uScope Digital Storage Oscilloscope-Basic Kit
AE-70-BK_053279
The uScope is a single channel, pocket-sized, digital storage oscilloscope (DSO) that is small, quick, and powerful enough to capture the fastest signals when connected to ConsuLab trainers or other signals. In less than 4 seconds it’s booted up and ready to take aim on any signal. This kit includes the most common accessories and test leads needed for labscope diagnostics. The uScope is equipped with a 12-bit analog/digital converter, samples at 1 million/second and includes 10x peak detect oversample.
Educational Advantages
- Although physically small, the uScope has many features equal to much more expensive units

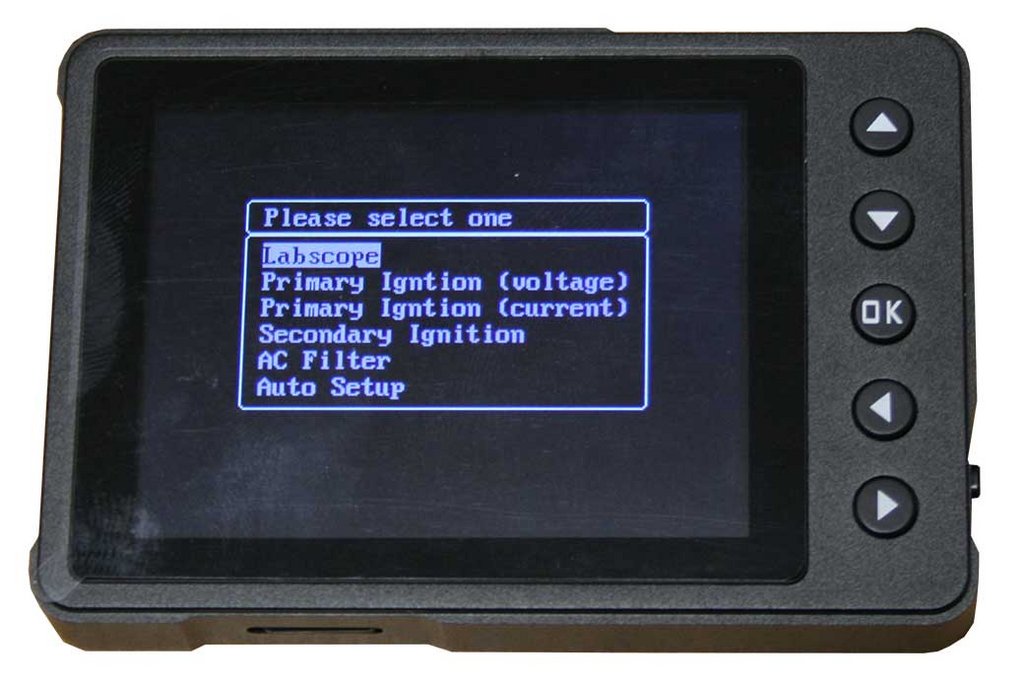

- The uScope has internal preset stored sample patterns for sensors, actuators, amp, ignition, and charging system patterns for student reference. Patterns can be overlayed with live pattern for comparisons
- The uScope has a built-in 10Hz-1MHz square wave signal generator for student learning and practice. The signal is manually adjustable for duty cycle and frequency
- Obtained waveforms can be saved and stored on a computer for future recall and instruction
- Being extremely affordable, multiple units can be purchased for groups of students, all viewing one signal with the optional signal distribution harness

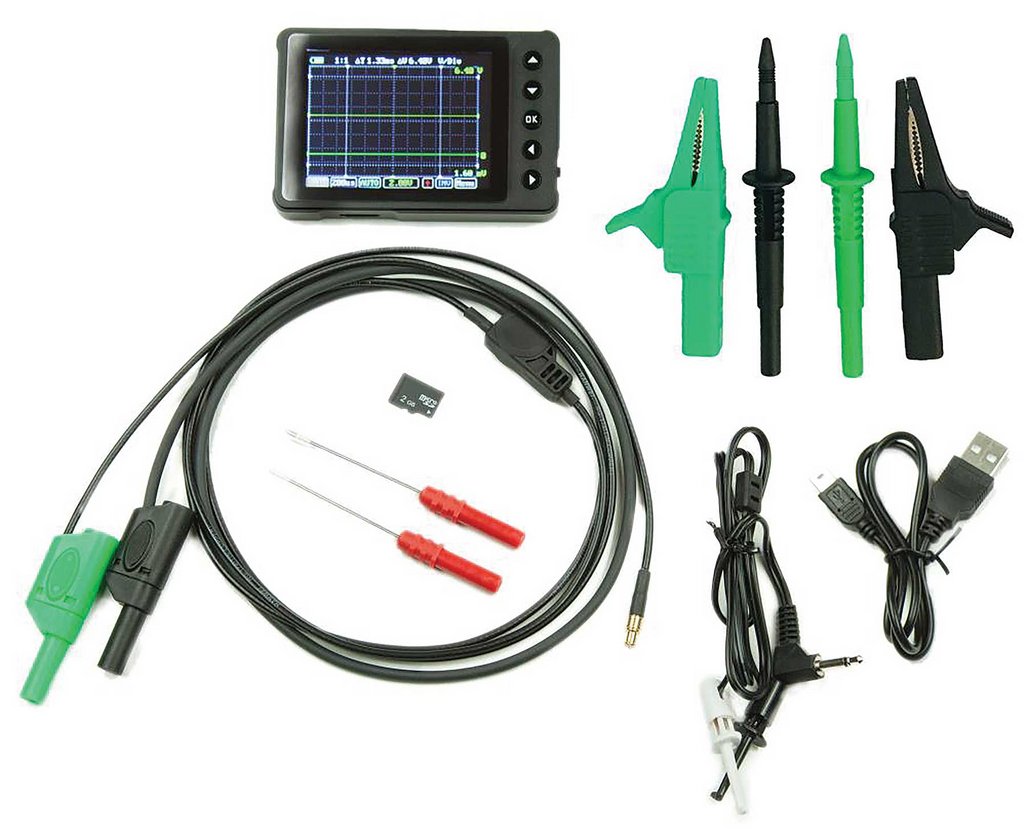

Kit Contents
- uScope unit
- White storage box
- Signal harness (green & black)
- Black & green alligator clips
- Micro SD card
- Mini USB cable
- 3.5mm mini phono cable for signal generator
- 2mm black & green signal probes
- Pair of needle back probes
- Protective boot (orange)
