Speed & Position Sensors Trainer
EM-200-25_052984

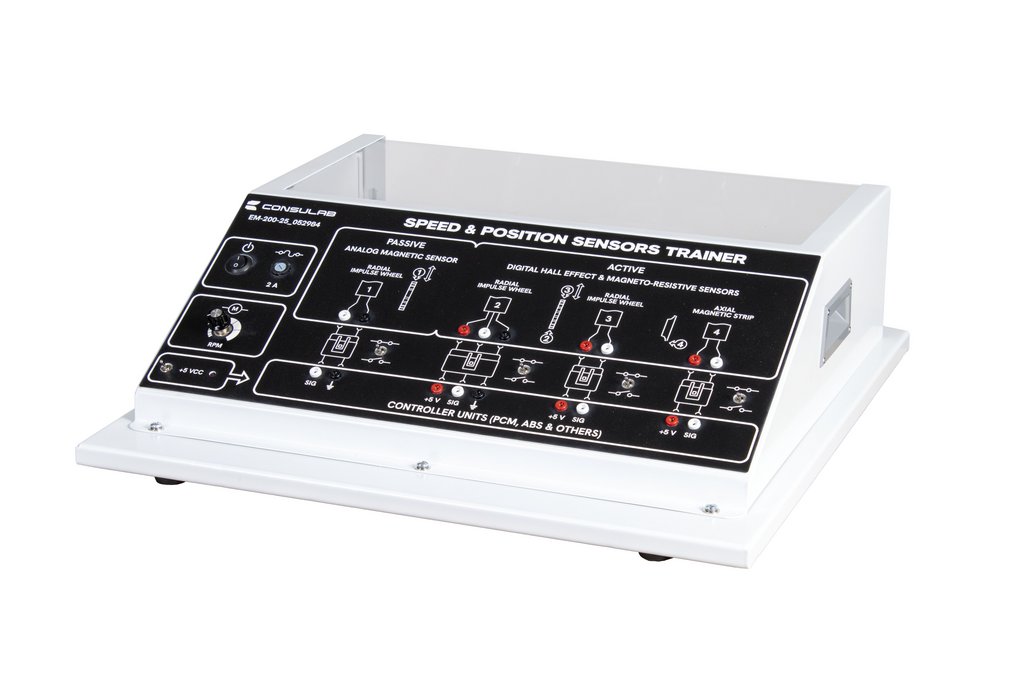

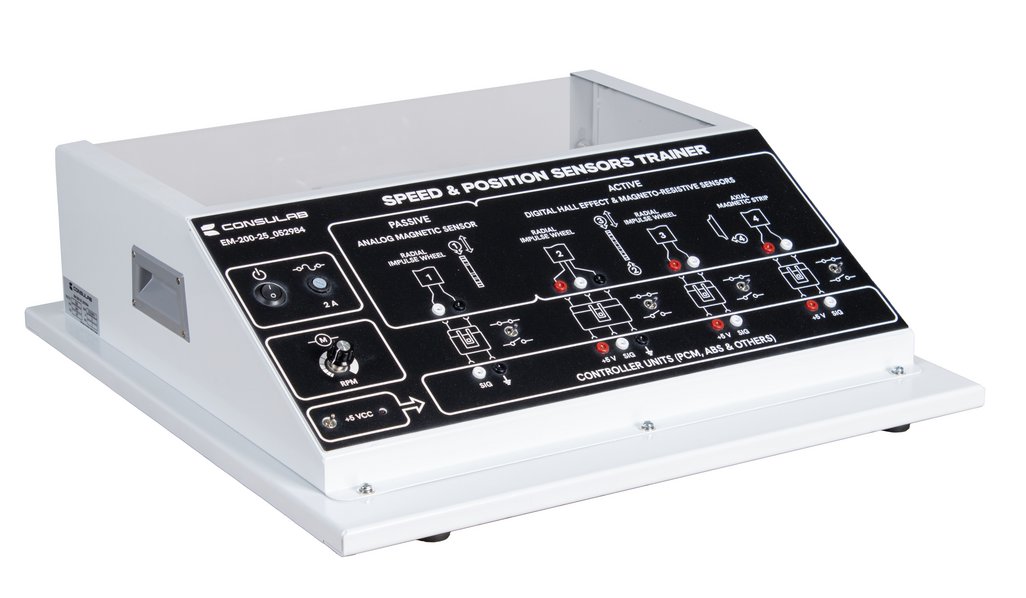

The EM-200-25 Speed and Position Sensors trainer is used to demonstrate the operation, diagnosis and testing of common types of analog and digital speed and position sensors as they operate on a real vehicle all in one convenient place. The trainer provides a safe and effective method of demonstrating the operating principles of different types of speed and position sensors that are common on today’s cars and trucks normally used for wheel speed, engine speed and vehicle speed.
Educational Advantages
- Turnkey product with complete curriculum and courseware
- Demonstrates full functionality of both analog (passive) and digital (active) speed and position sensors
- Electronically controlled variable speed drive motor allows sensor operation from zero RPM through both steady and variable speeds
- Magneto-resistive magnetic strip sensor can detect instant movement of rotation or 0 kph/mph
- Allows full diagnosis and testing with DVOM and oscilloscope
- Switches allow the sensor to be disconnected/connected in the circuit for real-world testing purposes
- Provides clear visualization of sensors without access limitations of a vehicle
Allows student demonstrations of the operation, diagnosis, and testing of:
- CKP (Crankshaft Position Sensors)
- CMP (Camshaft Position Sensors)
- VVT (Variable Valve Timing Sensors)
- ABS Wheel Speed Sensors (all types)
- RPM and Vehicle Speed Sensors
Features

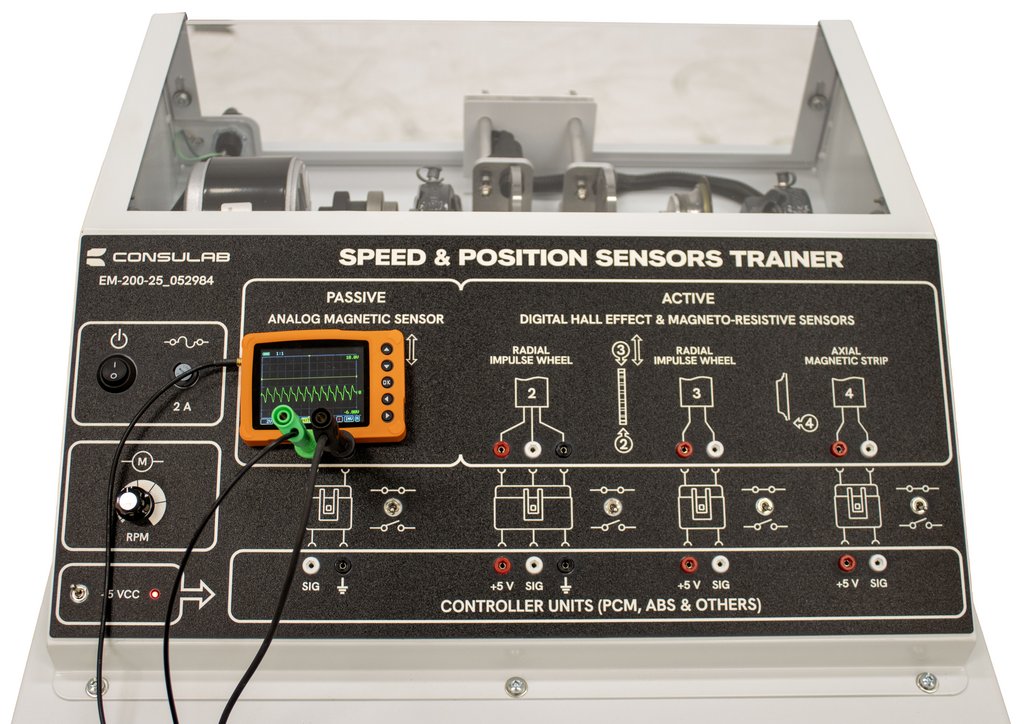

- Sensor test receptacles for hookup of DVOM and Oscilloscope

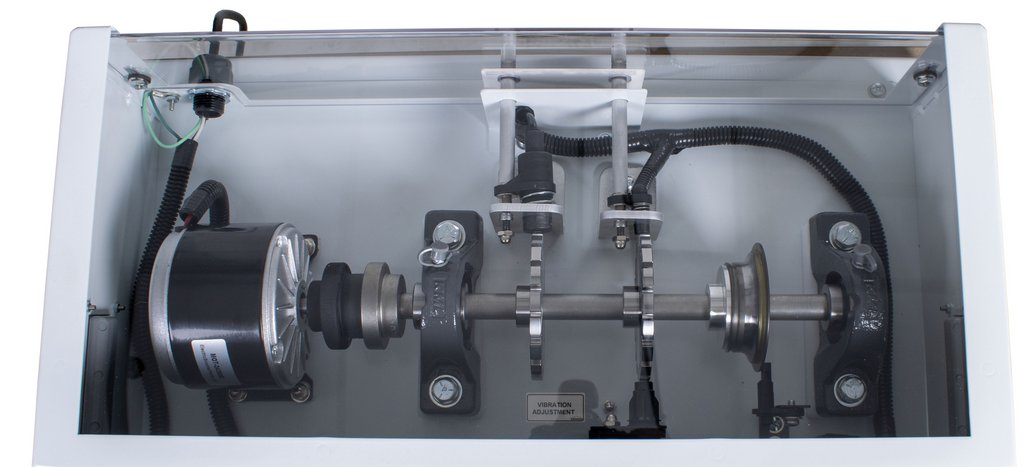

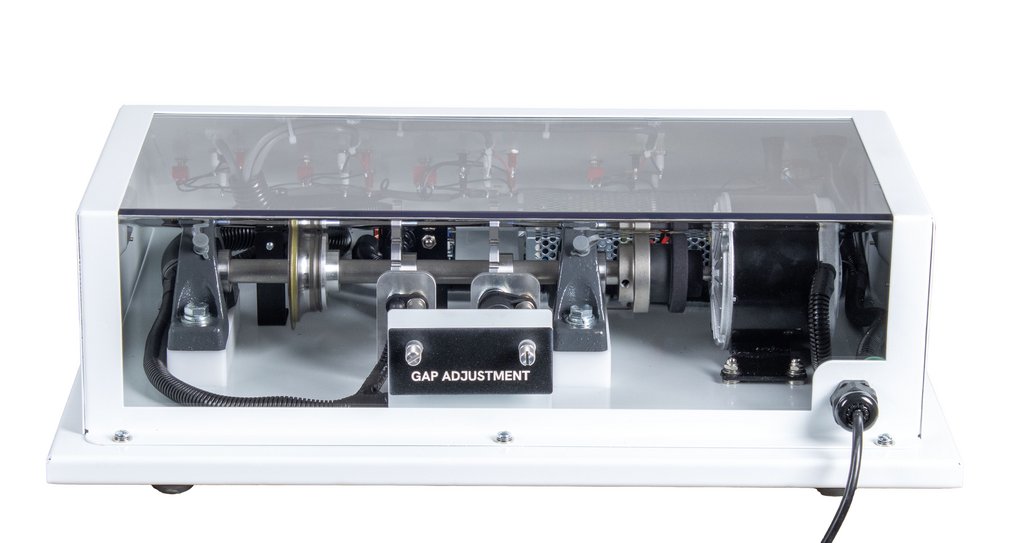

- Radial analog (passive) inductive sensor with adjustable air gap to show effects on operation
- Digital Hall-Effect Sensor
- Radial and axial digital (active) magneto-resistive sensors (adjustable radial sensor to show effect on operation)
- Equipped with sensor disconnect switches for separate testing of both harness side and/or component side of sensor

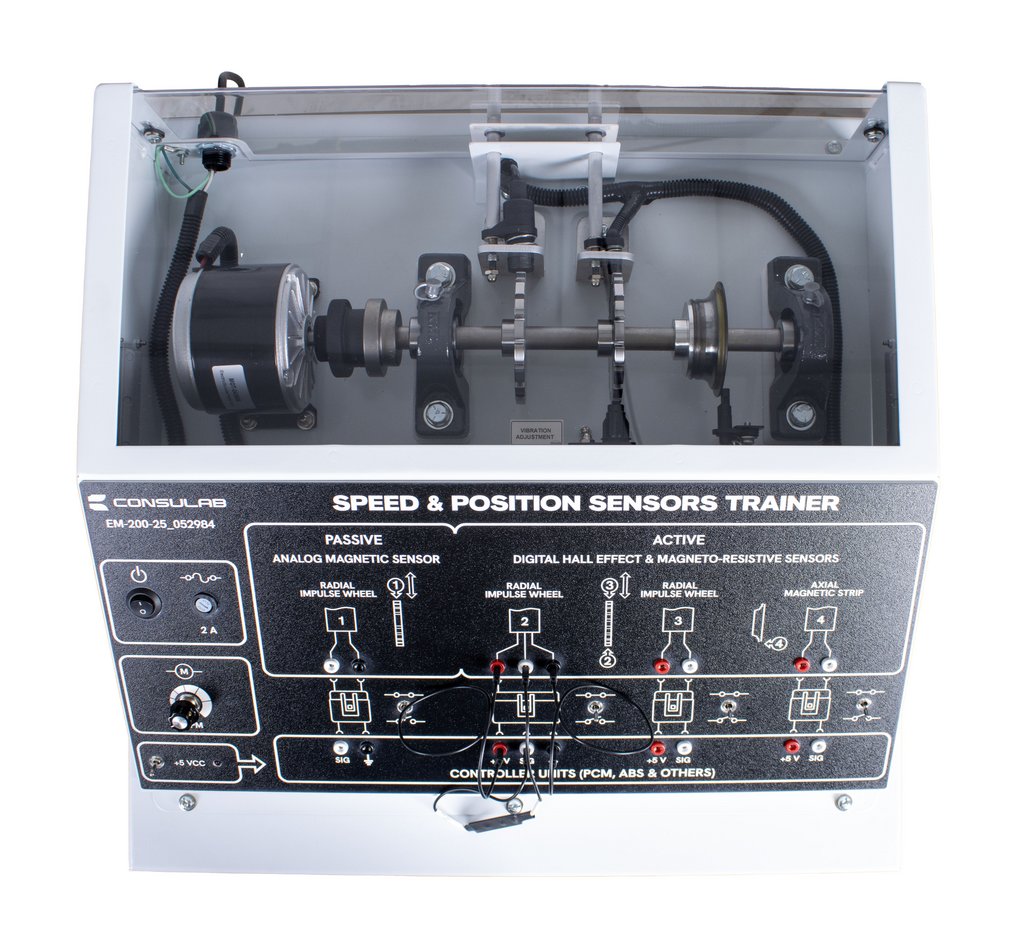

- Trainer has a bench top design that allows clear student visualization of sensor operation, diagnosis, and testing
- Electronically controlled variable speed electric drive motor
- 120V AAC/DC power supply included
