CL-1918-1S Spec Sheet

consulab, automotive trainer

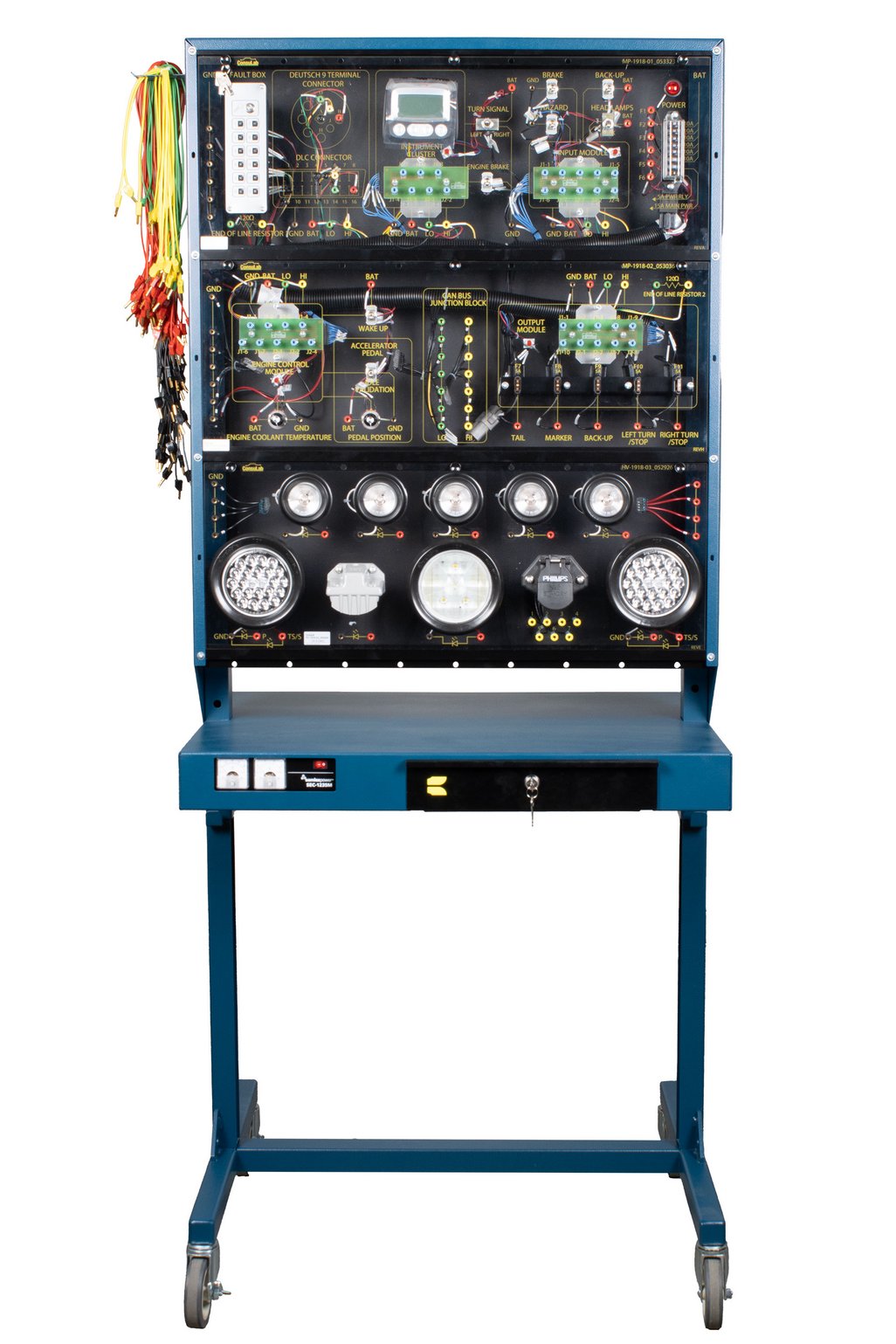

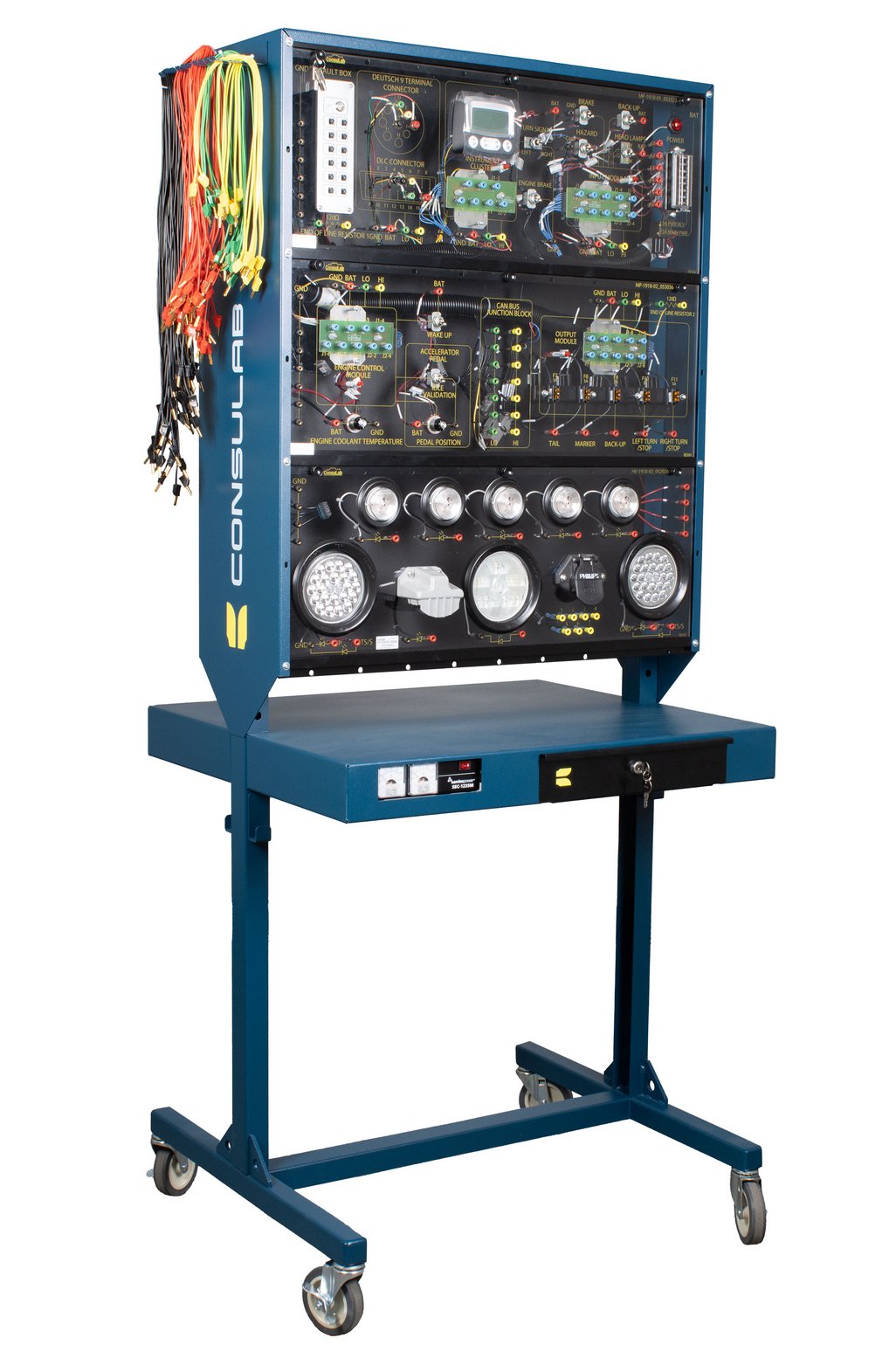

Single Sided CAN Bus Multiplex System Trainer

 MP-1918-1S_053040

The ConsuLab MP-1918-1S is a CAN Bus Multiplex trainer that communicates in J-1939 protocol. Digital and analog inputs and outputs can be activated. Analog signals can be displayed using the J-1939 display. The trainer utilizes the “Moduponent®” design feature which allows unlimited expansion capabilities. This unit is equipped with an integrated electronic fault box containing 12 faults.






REQUEST A QUOTE
Educational Advantages
  • The MP-1918-1 trainer uses SAE J1929 communications protocol to operate a 4-module CAN Bus network, which includes both a DLC and a Deutsch Connector
  • The trainer demonstrates common multiplexing circuit controls via a high speed CAN Bus network
  • Students connect modules and components using included jumper wires
  • The MP-1918-1 can be used as a CAN Bus demonstration trainer, or, using the included comprehensive student lab manual, as a CAN Bus training course
  • Built-in electrical fault box allows fault insertion into circuits for diagnostic training and student comprehension
  • CAN Bus diagnostics can be taught using a DMM and DSO to look at Bus resistance, wake up signal and high speed information packets
  • Diagnostic strategies learned on the MP-1918-1S are easily transferred to a vehicle
Features
  • Included user manual with theory explanations of CAN Bus, student exercises, schematics, sample scope patterns, and check tests
  • Includes four modules that replicate heavy vehicle applications, including instrument cluster, input, engine, and output modules. Trainer can also be used to instruct basics of CAN Bus automotive
  • Includes digital and analog inputs/outputs
  • Each module has test points for individual diagnosis and testing
  • J-1939 display on Moduponent panel for observation of real time circuit changes

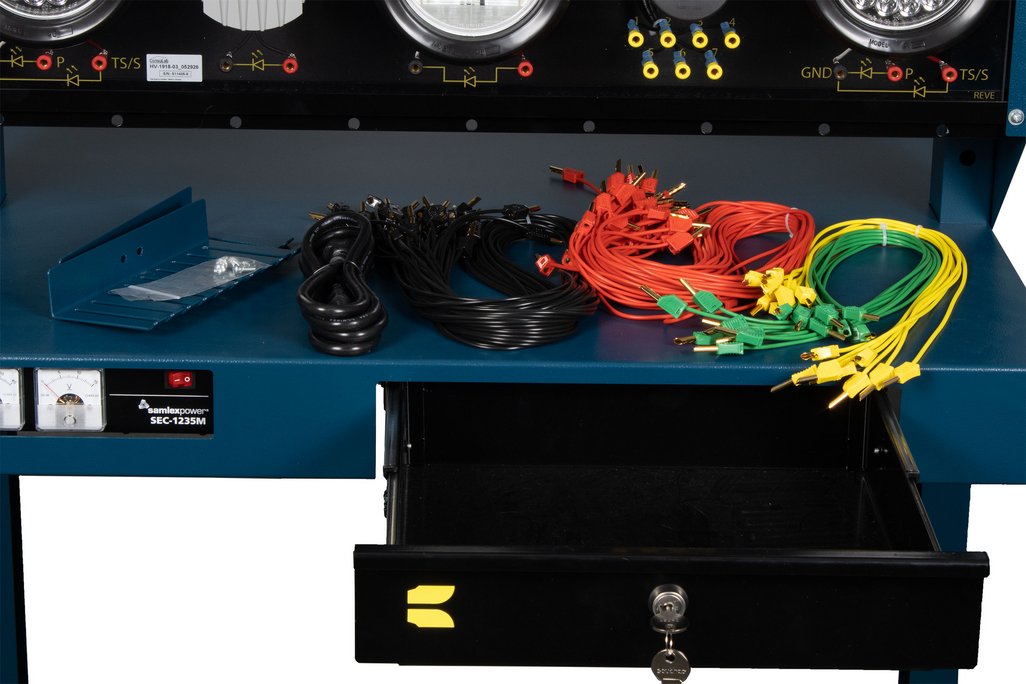

  • Sturdy powder coated metal stand equipped with lockable storage drawers and a UL-approved 120VAC/12VDC power supply (w/ analog voltmeter and ammeter)
  • Jumper wire storage racks mounted to frame
  • Stand has two fixed and two lockable casters for easy trainer movement
Configurations Available
  • MP-1918-1S_053040: Single-sided trainer
  • MP-1918-1D_053041: Double-sided trailer
  • MP-1918-1U_053042: Upgrade kit, convert a single-sided trainer to a double-sided trainer
  • CL-MP-1918_053333: Combination automotive and multiplexed lighting system trainer
  • HV-MP-1918-053303: Combination heavy truck and multiplexed lighting system trainer
