EM-140D-FC03 Spec Sheet

consulab, automotive trainer

ConsuLink 2017 RAM 6.7L Diesel Engine Trainer

 EM-140D-FC03_053327

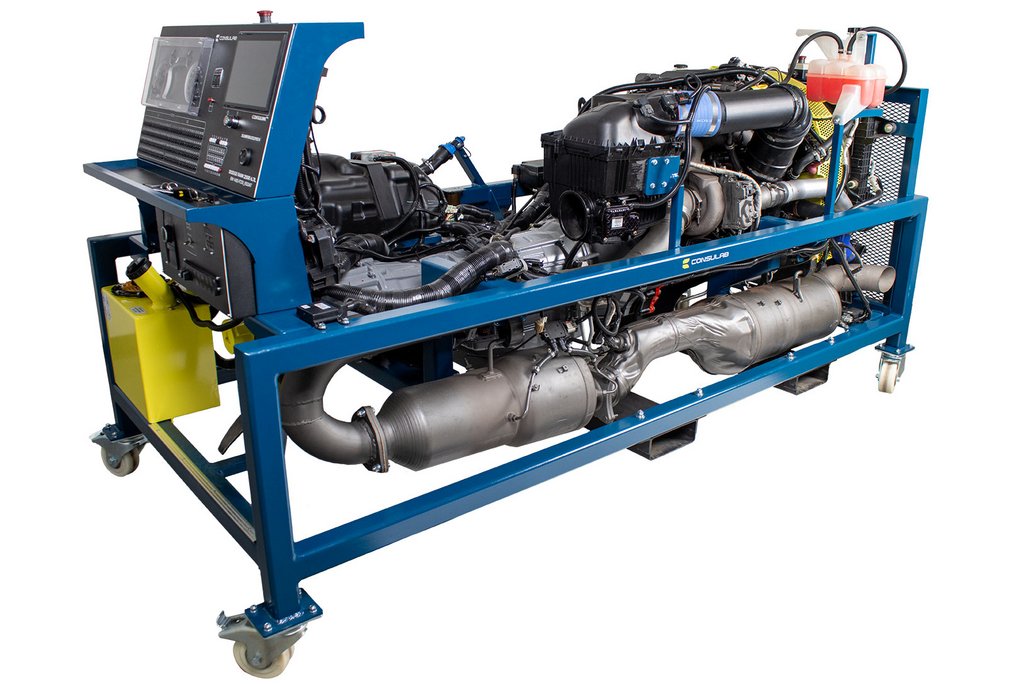

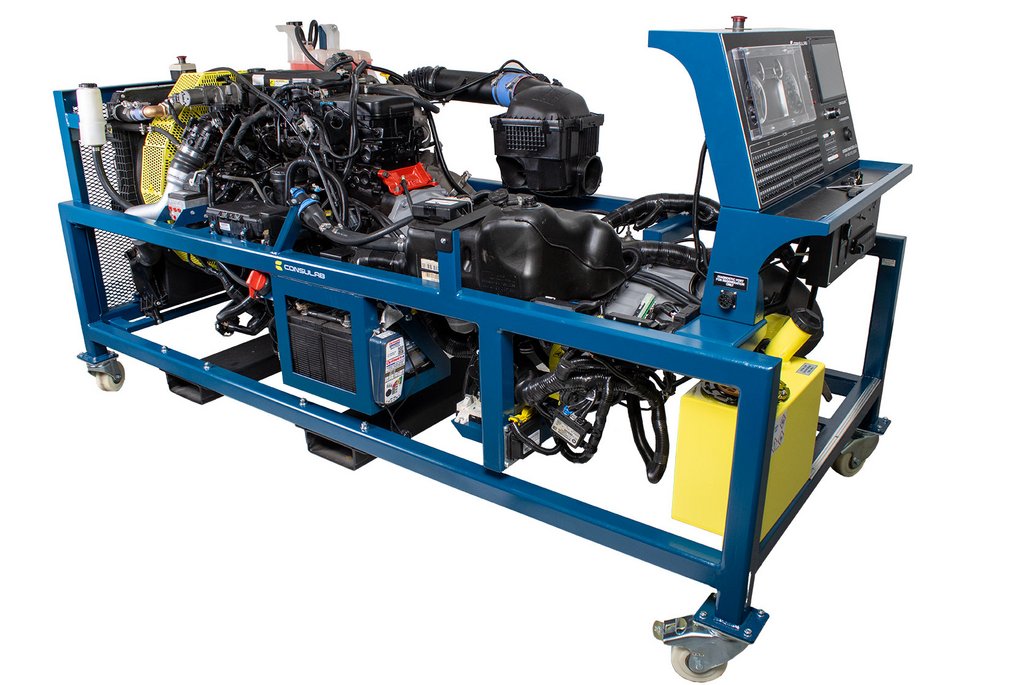

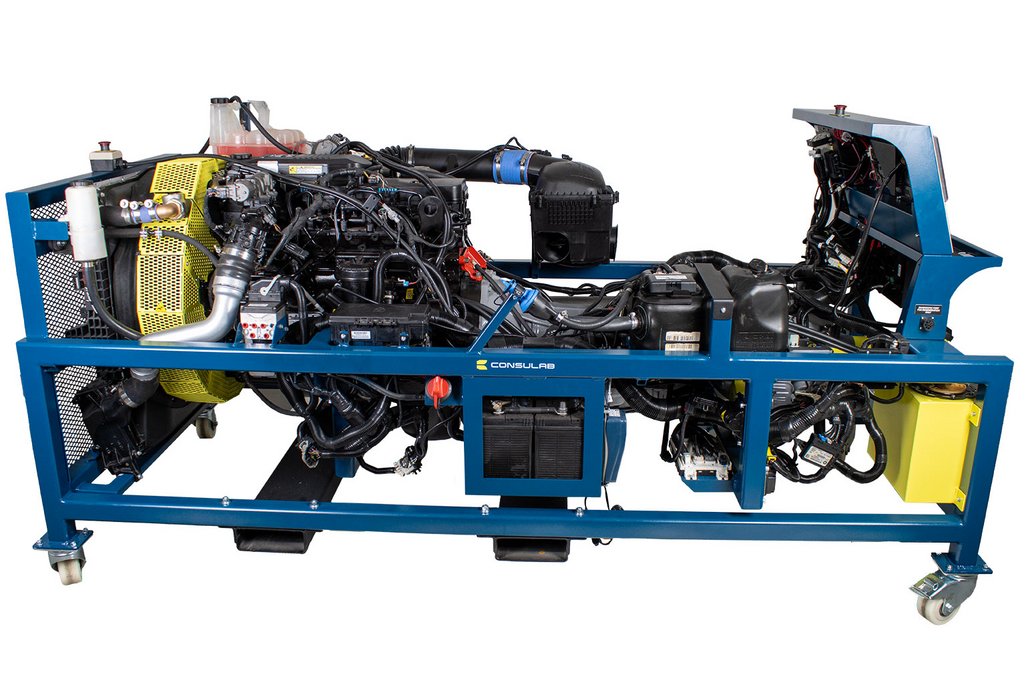

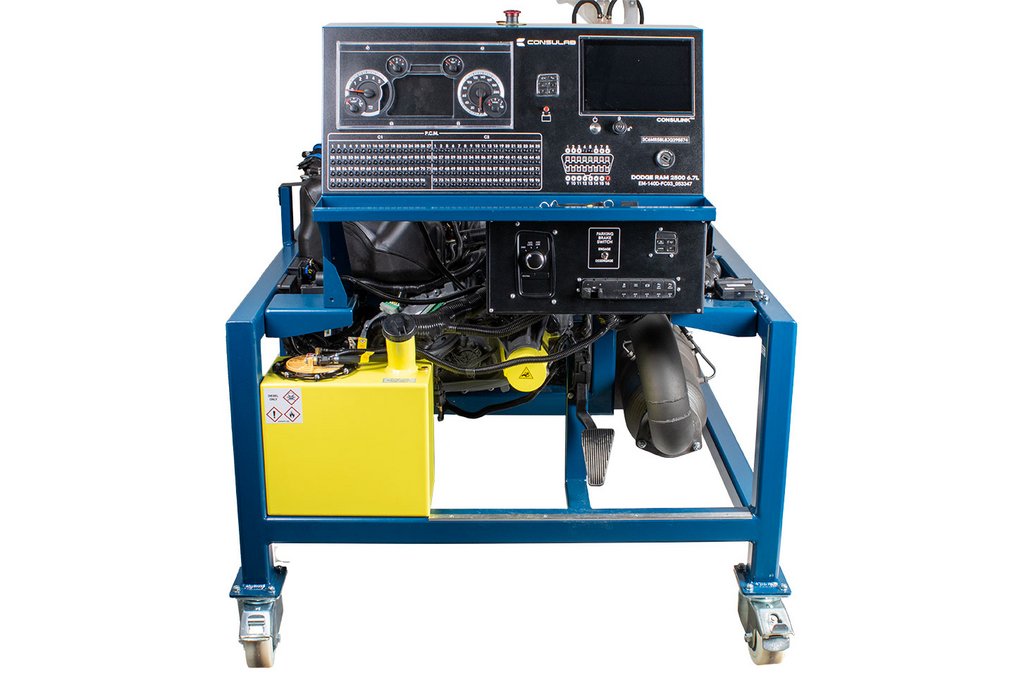

The EM-140D-FC03_053327 diesel engine trainer is a fully operational engine mounted on a mobile stand. Trainer is based on 2017+ RAM trucks with Cummins 6.7L Vin L turbo-diesel engine platform used in RAM 2500/3500 heavy duty models — Equipped with tablet-based ConsuLink™ Student Learning Platform designed to enhance student engagement. Trainer is easy to work on and all major components, wiring and connectors match OEM configuration — Equipped with safety guards covering all rotating components.

REQUEST A QUOTE
Educational Advantages
  • Allows instructional demonstration to students without the access limitations of a complete vehicle
  • Engine systems respond to inserted faults with real world symptoms, OEM DTCs, scan tool data-stream PID changes, and check engine light operation

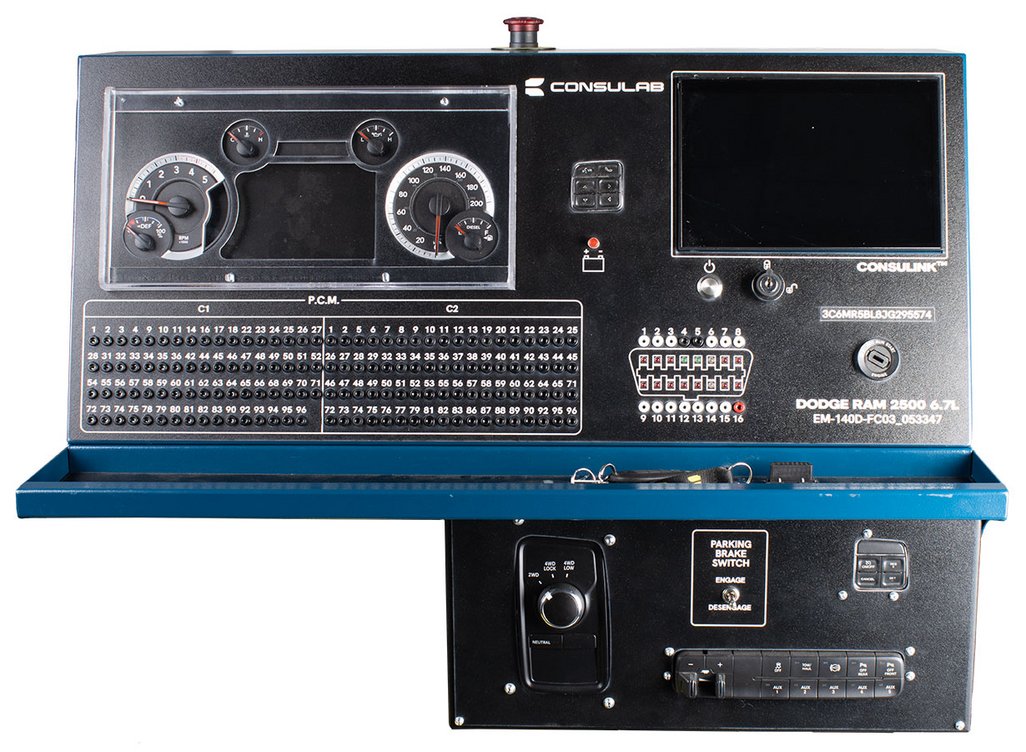

  • Includes a PCM break out box allows easy access for component testing without disconnecting connectors
  • Includes a DLC (datalink connector) break out box specifically designed for use in education environments with robust 2mm test pins and LED activity indicators for all 16 pins of a standard OBDII DLC
  • No simulation. All original OEM components are used
  • Provides a fully functional recycled engine with available and repeatable faults for student learning and diagnosis
  • Promotes student “ownership” and engagement with “hands-on” learning with real components
Application
  • 2017+ RAM 2500/3500 truck with Cummins 6.7L Vin L turbo diesel engine compliant with EPA 2017 standards
Features
  • ConsuLink student learning platform
  • High Pressure Common Rail (HPCR) fuel system
  • 6-speed automatic transmission
  • Variable Geometry Turbocharger (VGT)
  • Exhaust Gas Recirculation system (EGR)
  • Selective Catalytic Reduction (SCR) with DEF injection
  • Steel tubing engine stand with four removable casters (2 locking)
  • Diesel Particulate Filter (DPF)
  • Intake throttle
  • Radiator
  • Fuel tank
  • DEF tank
  • Closed crankcase ventilation system
  • Batteries with master disconnect switch
  • Automatic regulated 12V battery charger
  • Custom instrument panel protection
  • Safety covers for all rotating devices
  • Custom coolant flow sight glass for V8 diesel engine
  • Comes with only one OEM key
  • Fork lift bars
  • Scan tool tray
