Power Seat System Trainer - GM
EM-200-05_053246

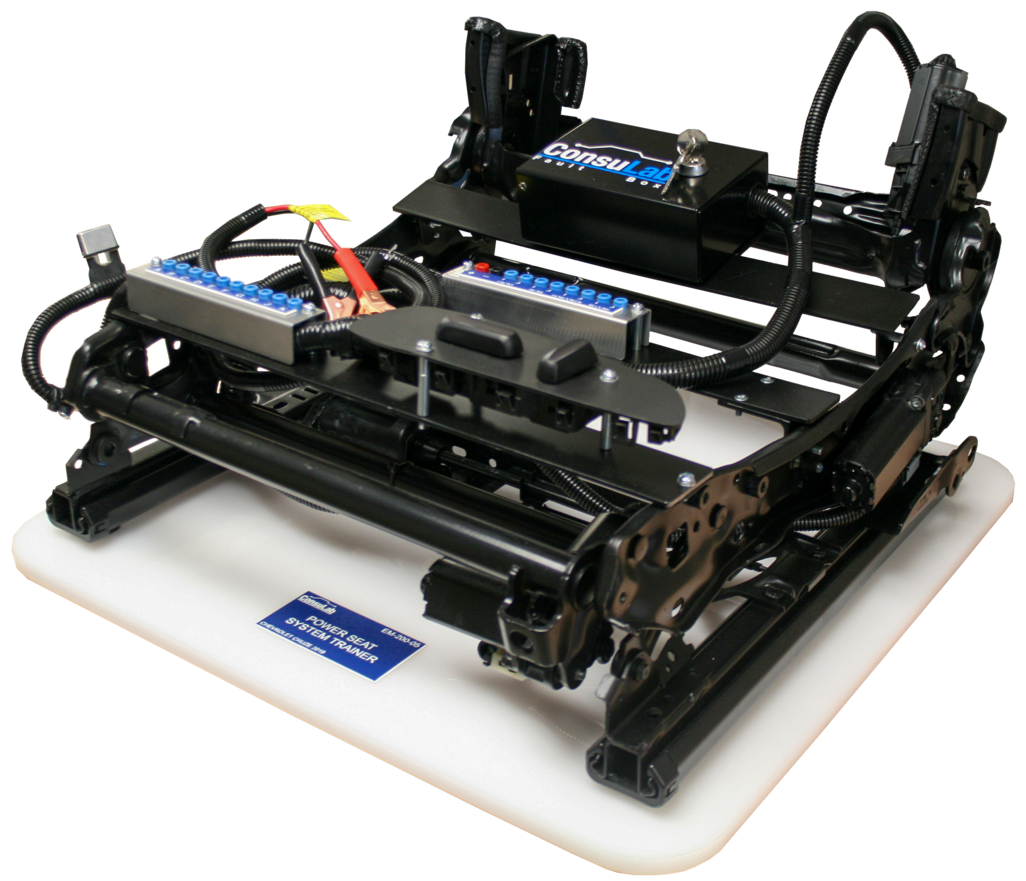

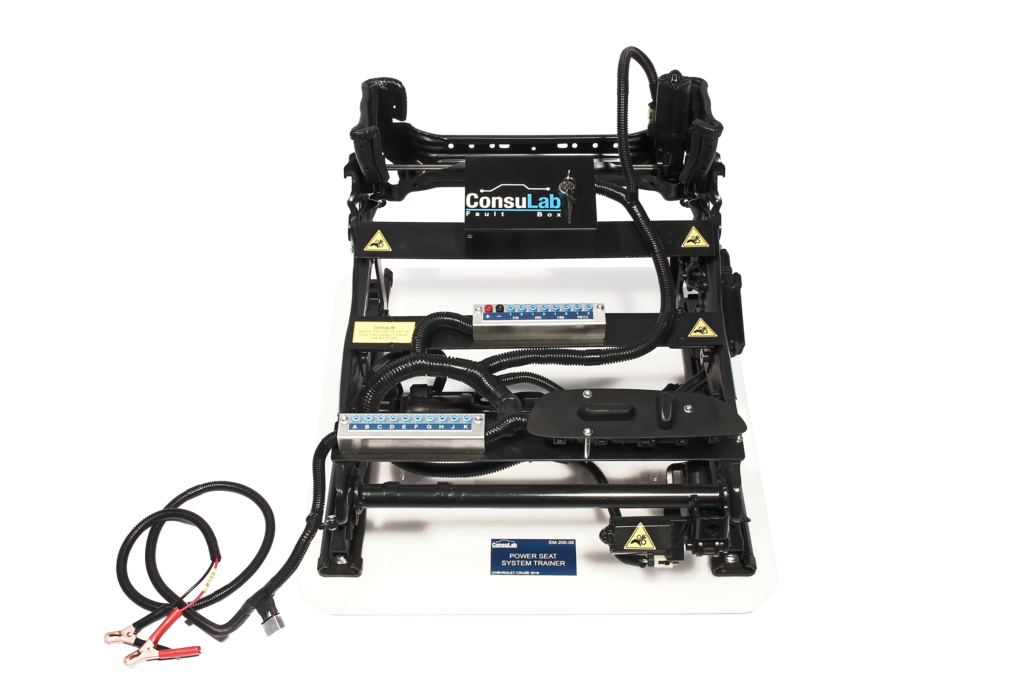

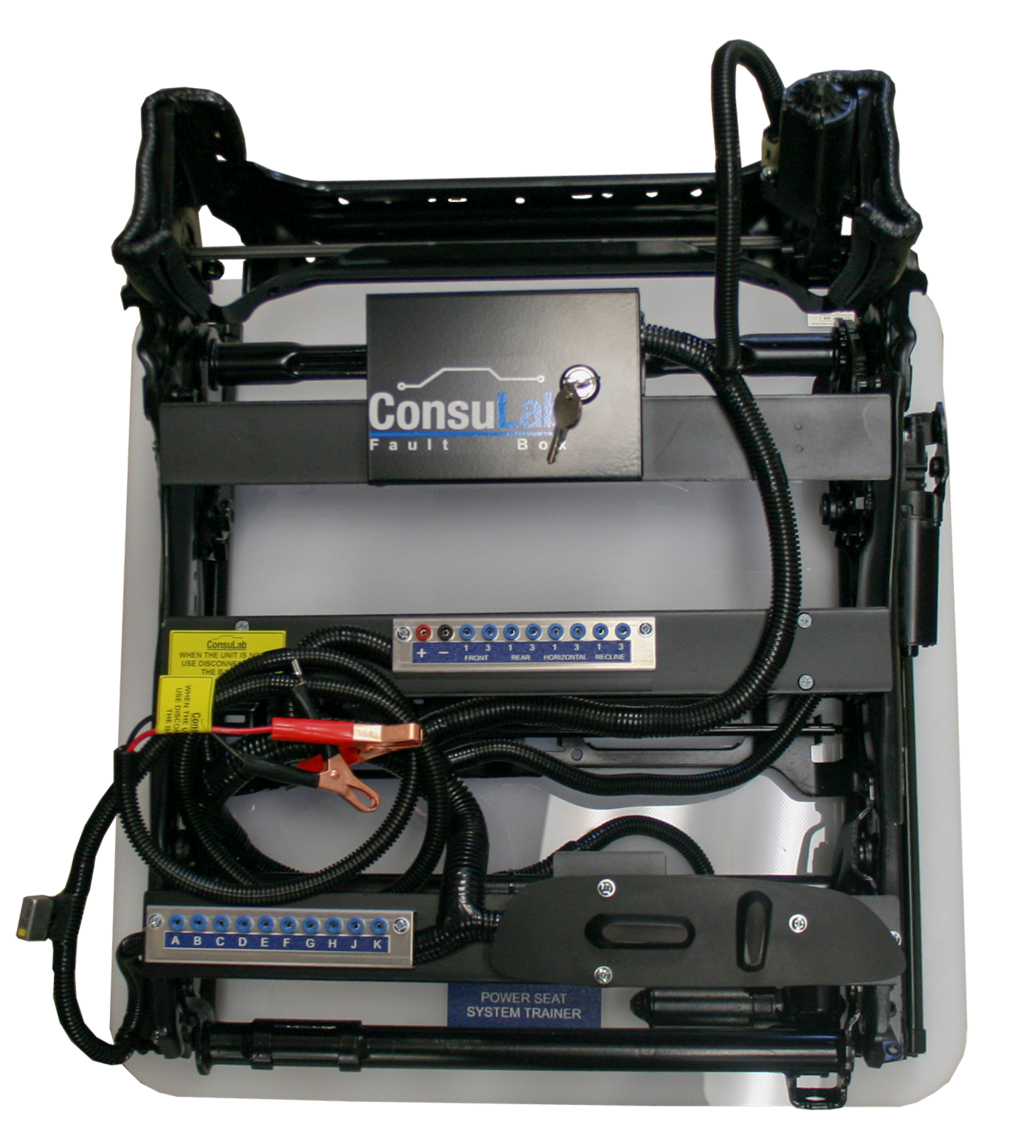

The EM-200-05 trainer allows for the demonstration of a complete power seat system using real-world components. Terminal block receptacles are provided for diagnostic test points. Fault insertion included. The trainer requires a 12V power supply to operate.
Educational Advantages
- Ability to visualize the operation of seat adjustment motors and switches
- Ability to test and verify a basic power seat circuit
- Six operational Faults can be inserted to promote student diagnostic troubleshooting competencies
- Includes wiring schematics, operation manual, student assignments, and instructor manual
Included Components
- Power seat assembly
- Power seat switch
- Fault box with 6 faults
- Test points for diagnosis
Application
- GM Chevrolet Cruze
