Multiplex Network Diagnostic Trainer
MP-750_052808

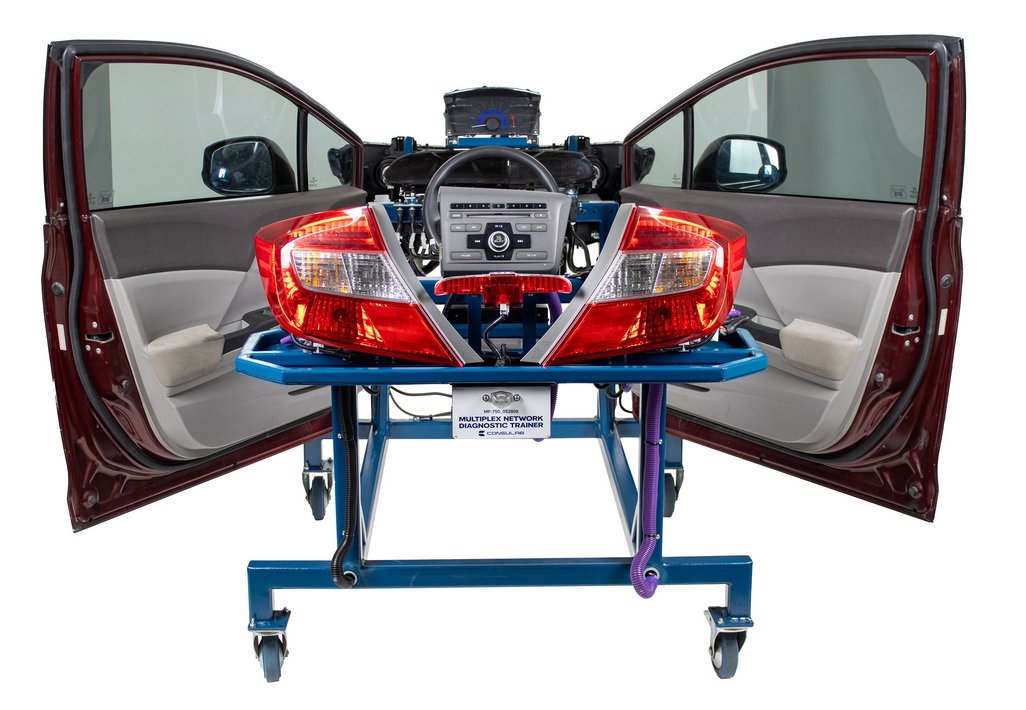

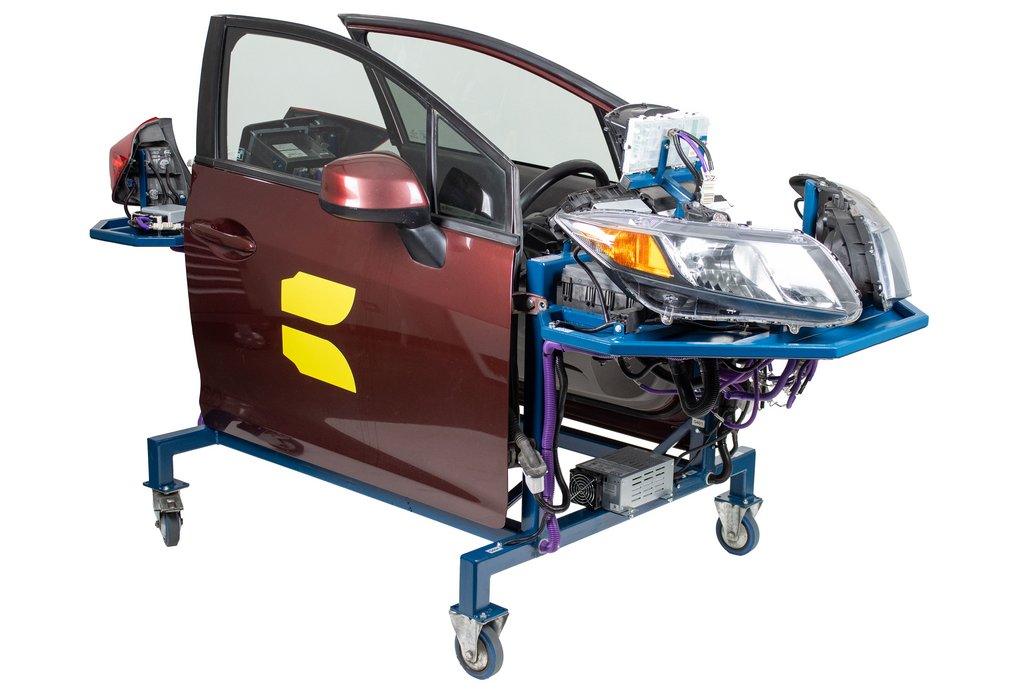

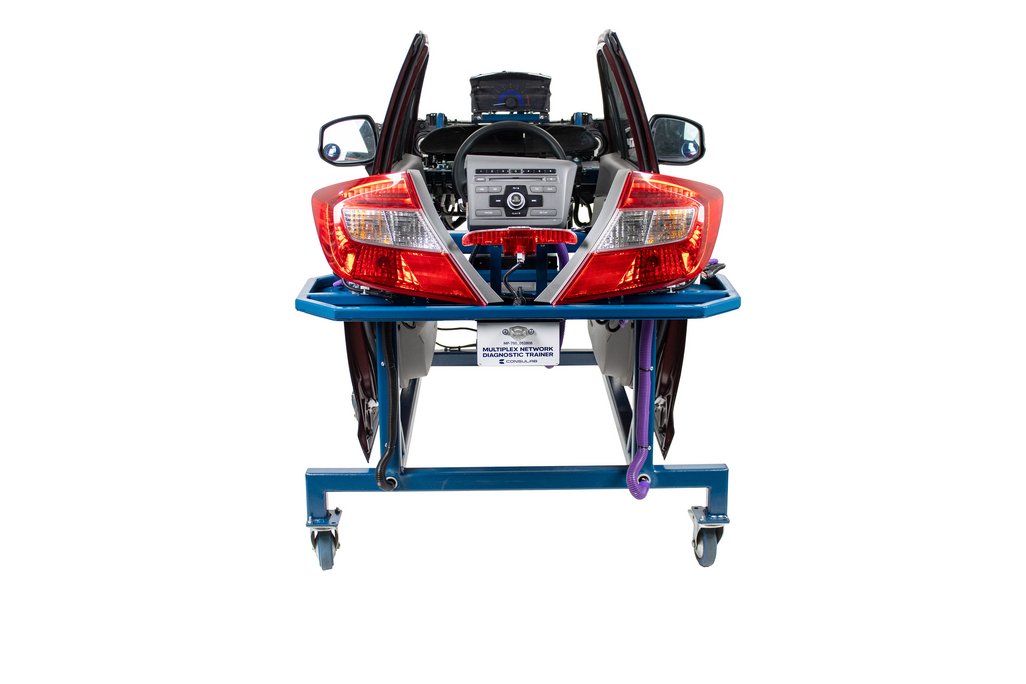

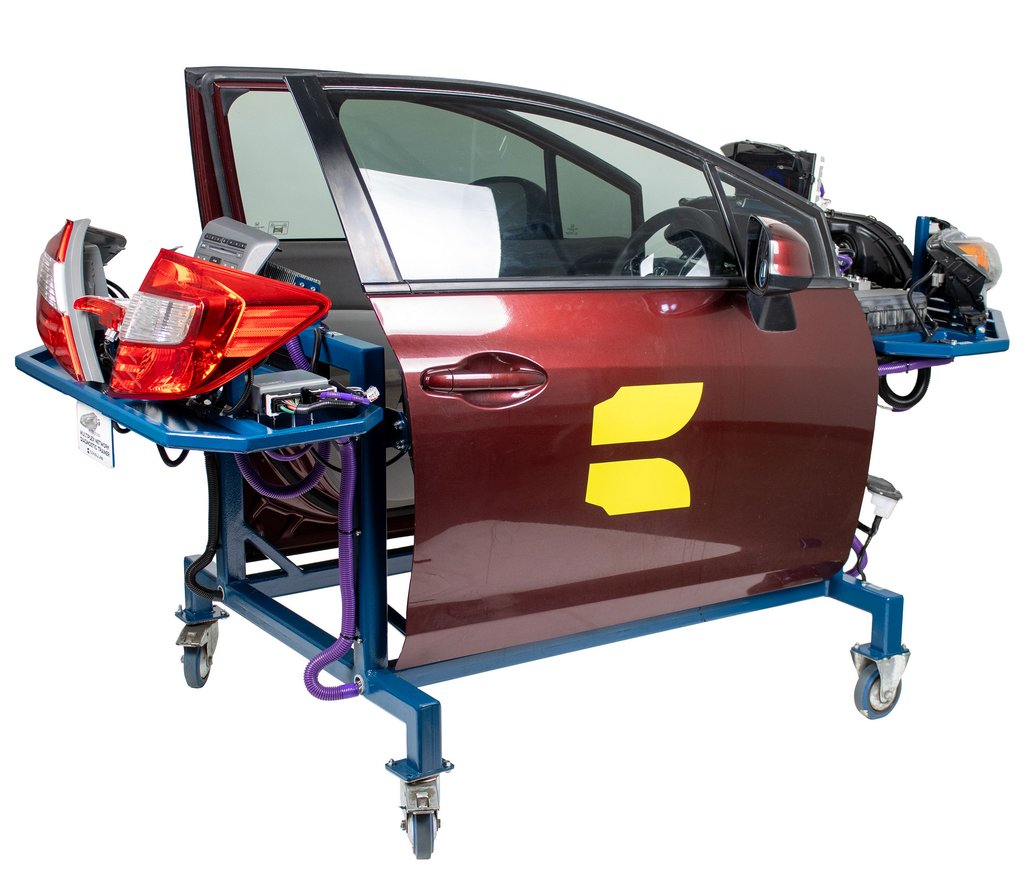

Do your students have difficulty understanding the operation of Multiplex and CAN Bus systems? Do you have access to vehicles that allow you to easily teach the operation, diagnosis and repair of CAN Bus circuits?The MP-750 Multiplex Network Diagnostic Trainer was designed from the ground up to assist you with these difficult tasks.The MP-750 is a totally functional vehicle CAN Bus trainer based on a Honda vehicle platform.
Educational Advantages
- Full curriculum package with student assignments and instructor answer keys
- Provides a “real world” functional vehicle systems trainer with full accessibility to components
- Full available communication between all modules
- Allows “hands-on” student activities for learning CAN Bus system operation, diagnosis and repair
- Fault box provides 12 “real world” vehicle problems requiring diagnosis and repair procedures
- All components, fuse box, wiring, and connectors exactly match OEM colors and service information
- DLC provides full access for scan tool and oscilloscope testing access
- Is a powerful teaching tool for demonstrating full functionality of vehicle CAN Bus system operation
- Engine systems respond to inserted faults with real world symptoms, OEM DTC’s, scan tool data stream changes, and check engine light operation
Features

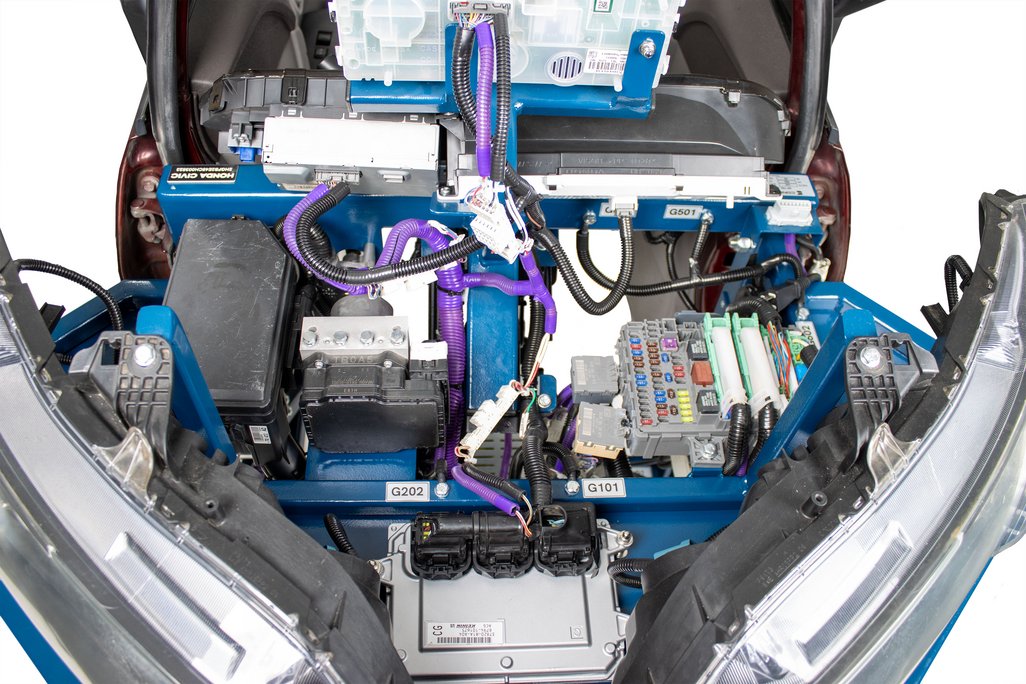

- OEM fuse box and power distribution center (matches OEM service information)
- All OEM components are used – no simulation
- Provides easy access to all components without limitations of a complete vehicle
- Integrated 55A power supply 120VAC/12VDC 60Hz (operates on a standard coated metal frame)
- Sturdy powder coated metal frame
- Compact and fits through standard door openings
- Manual fault box with 12 selectable system faults
Included OEM vehicle systems
- Functional Multiplex & CAN Bus systems with 11 system modules
- All OEM vehicle lighting systems
- Functional Honda F (CAN Hi/Lo), B and K-line circuits
- Entertainment (Radio, CD/DVD, Bluetooth), immobilizer, alarm

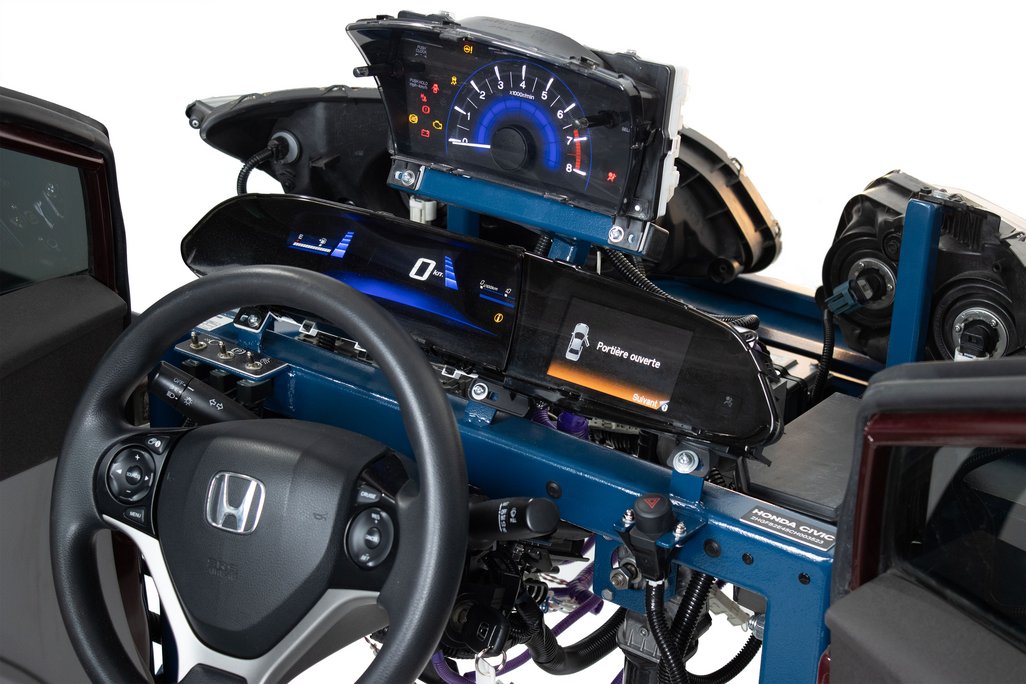

- OEM instrument panels with gauges
- Multi-information, HVAC, and entertainment dashboard displays
- Wipers, horn, power door locks, mirrors, and windows
- Operational vehicle doors with electrical controls
- Recycled vehicle harness, lighting components, electrical power distribution components and door assemblies
- Mobile stand constructed of 2″ (5cm2) tubular steel equipped with four 5″ (23.7cm) phenol casters (2 fixed and 2 swivel w/locks)
- Original instrument panel
- OBDII data link connector with matching OEM terminal identification and wire colors
- Original fuse box and power distribution center with circuit protection
- Integrated 55A power supply 120VAC/12VDC 60Hz
