2019-2017 GM Truck L5P 6.6L Diesel Engine Trainer
EM-140D-GM02_035027

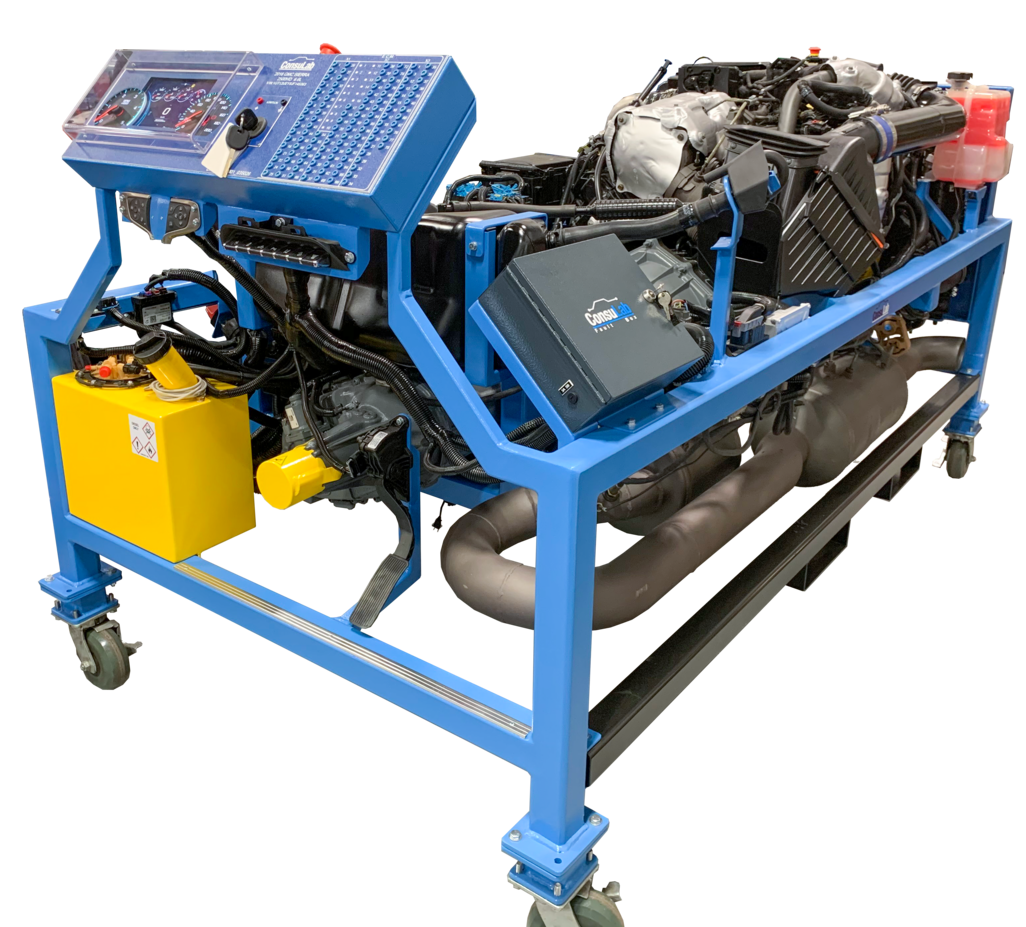

The ConsuLab EM-140D-GM02_035027 is a fully functional recycled 2019-2017 GM Duramax 6.6L V8 L5P turbo-diesel engine mounted on a mobile stand. The trainer has easy access for service procedures of all major components. Wire colors and connectors match OEM configuration and service information Many ASE Education Foundation tasks can be performed with this trainer pertaining to areas A6 (Electrical) & A8 (Engine Performance). Full protection safety guards are installed covering all rotating components.
Educational Advantages
- Allows instructional demonstration to students without the access limitations of a complete vehicle
- Engine systems respond to inserted faults with real world symptoms, DTCs, scan tool PIDs, and check engine light operation
- Included PCM break out box allows easy access for component testing without disconnecting connectors
- No simulation. All original OEM components are used
- Provides a fully functional recycled engine with available and repeatable faults for student learning and diagnosis
- Promotes student “ownership” and engagement with “hands-on” learning with real components
Application
- 2019-2017 GM truck with Duramax 6.6L V8 L5P turbo diesel engine compliant with the most recent EPA standards
Optional Equipment
- Vinyl dust cover (EM-1200-140D_024082-04)
- Additional OEM ignition key (EM-140-21_053150)
- Electronic programmable fault box with 16 faults & capable of programming both constant and intermittent faults with remote control via USB cable
(EM-250-2C_053090-01)
Features
- Direct injection with high-pressure common rail
- Allison transmission MGM
- OBDII data link connecter for scan tool hookup

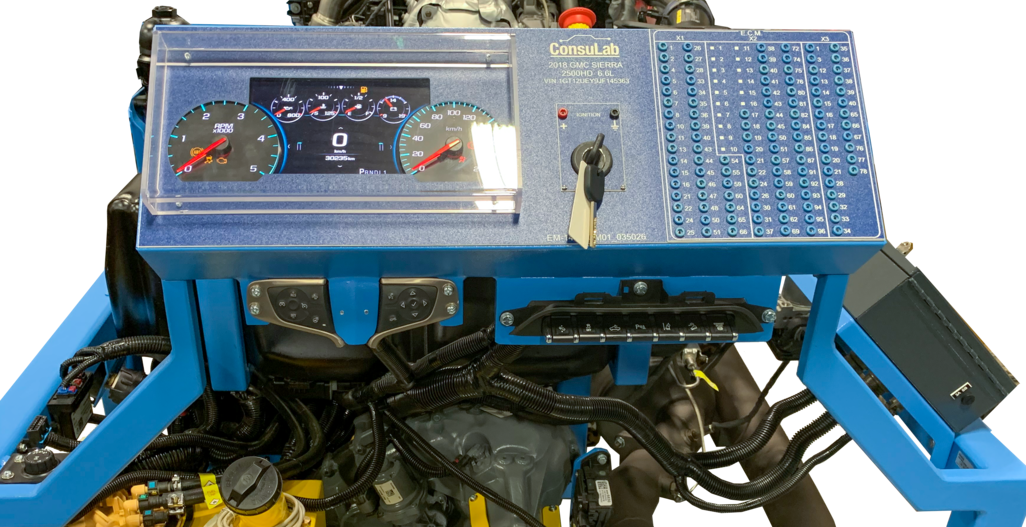

- Integrated ECM break out box with test points for oscilloscope and DMM hookup
- Break out box terminals identified with OEM terminology and numbers
- Complete exhaust system with catalytic converter
- Cooled Exhaust Gas Recirculation (EGR)
- Selective Catalytic Reduction (SCR) with DEF injection
- Diesel Particulate Filter (DPF)
- Intake throttle
- Radiator
- Fuel tank
- DEF tank
- Closed crankcase ventilation system
- Batteries with master disconnect switch
- Automatic regulated 12V battery charger
- Custom instrument panel protection
- Safety covers for all rotating devices
- Custom coolant flow sight glass for V8 diesel engine
- Comes with only one OEM key
- Fork lift bars
- Scan tool tray
