Fuel Injection & GM Engine Management Trainer

 EM-330-1_052616

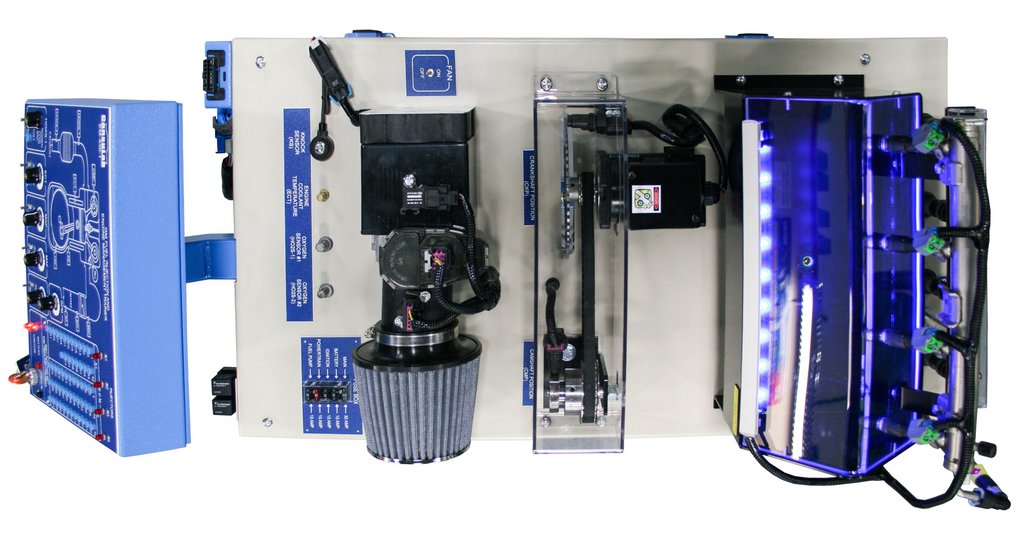

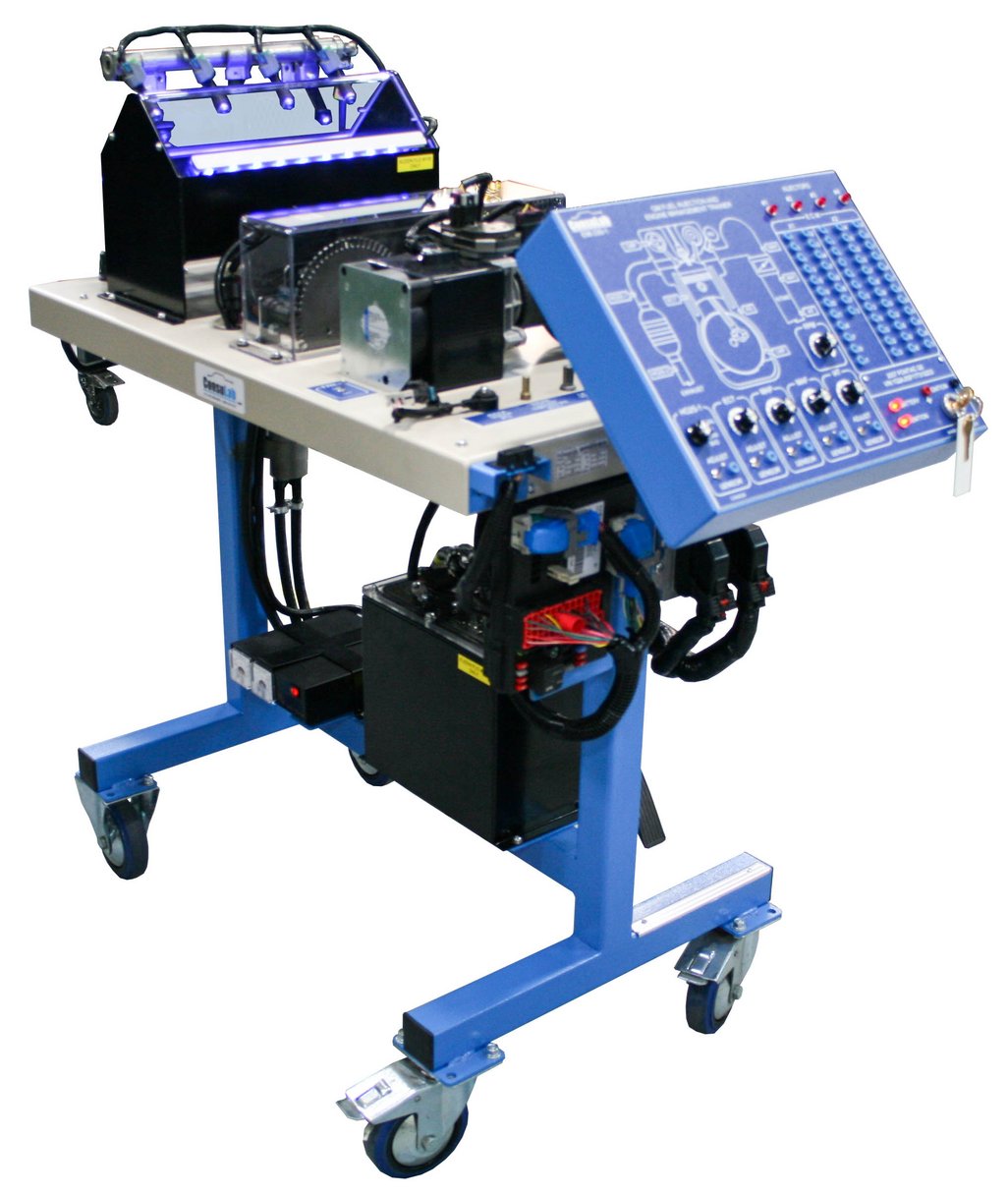

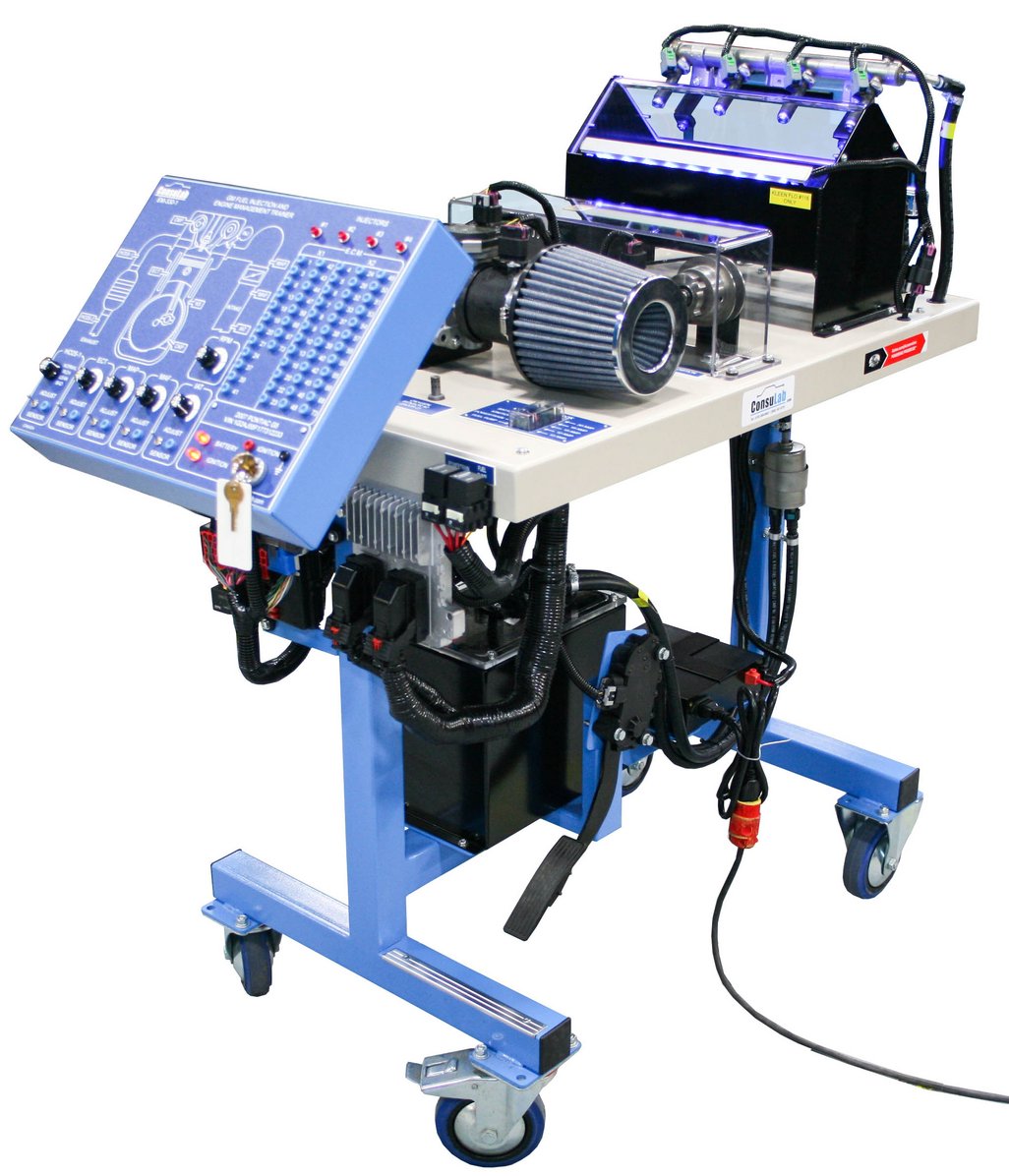

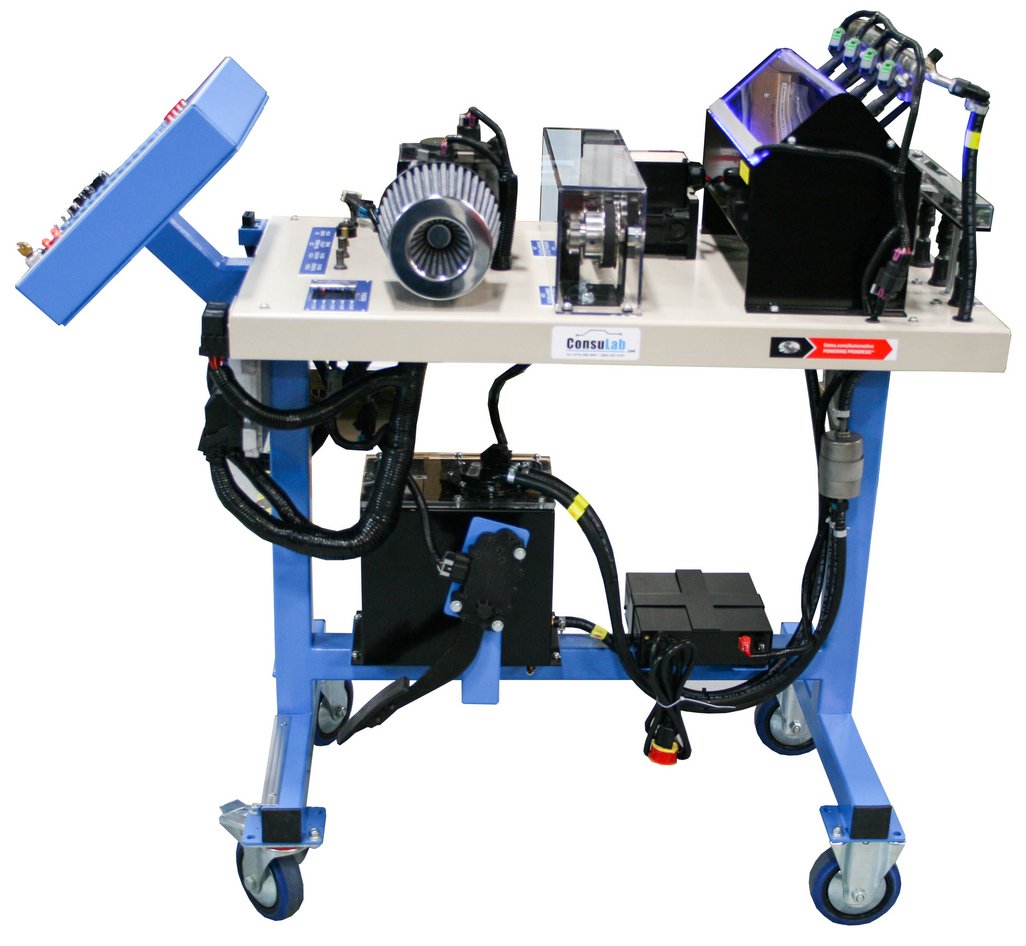

The ConsuLab EM-330-1 Fuel Injection and Engine Management Trainer functions as in a real automobile but uses non-flammable fluid instead of gasoline for safety and educational purposes. The trainer is used to teach and demonstrate engine management systems in a vehicle.The advantage to the trainer comes in the fact that it produces no exhaust, will fit through virtually any doorway, has adjustable inputs and is the actual system used on the vehicle. The VIN on the front faceplate of the trainer contains the actual VIN of the vehicle that all components came from. The adjustable sensor inputs greatly improve the instructor ability to have students understand cause and effect.


Educational Advantages
  • Introduce engine management to a class
  • Introduce the use of a Digital Multi Meter (DMM)
  • Introduce scanner operation
  • Supply information that utilizes a DSO
  • Teach pattern analysis – both voltage & current
  • Look at fuel and ignition strategies
  • Teach fuel delivery operation, including fuel pump speed calculation
  • Teach fuel injection operation
  • Teach ignition operation
  • Teach the input vs output concept, so important for a student/technician to understand
Application
  • GM Chevrolet Cobalt / Pontiac G5 2007+
Features
  • All OEM components, wiring, connectors, & wire colors
  • OBDII data link connector
  • Integrated ECM breakout box
  • Most engine input sensors & output actuators
  • Return type fuel system with pressure regulator
  • COP (Coil-on-Plug) ignition system
  • ECM breakout box with test receptacles for test equipment hookup
  • Adjustable sensor inputs
