EVAP System Trainer
EM-200-22_052166

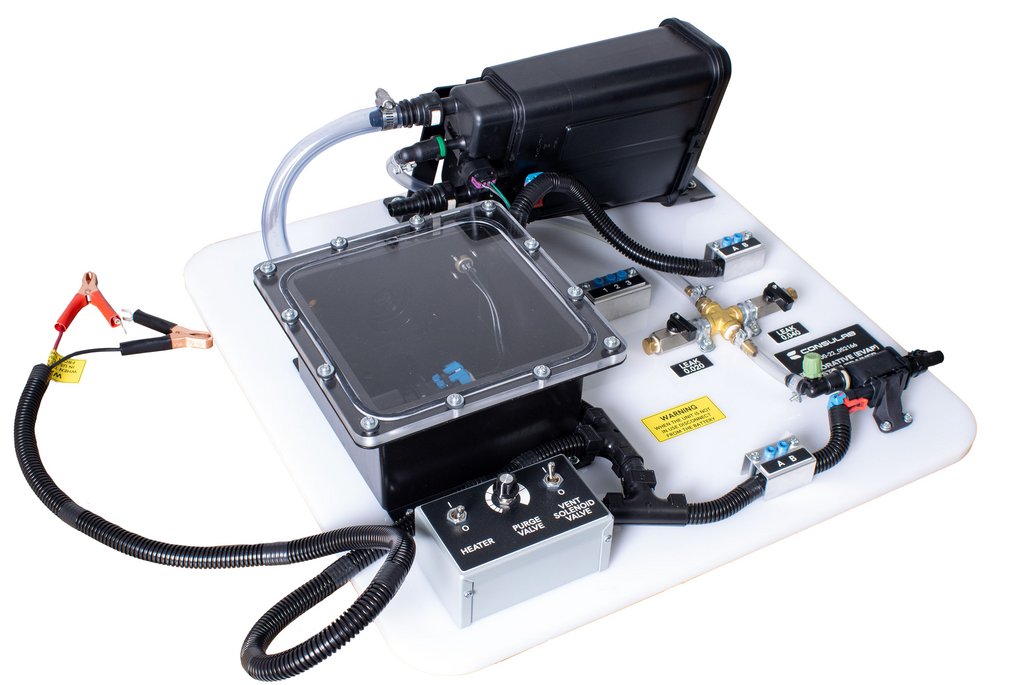

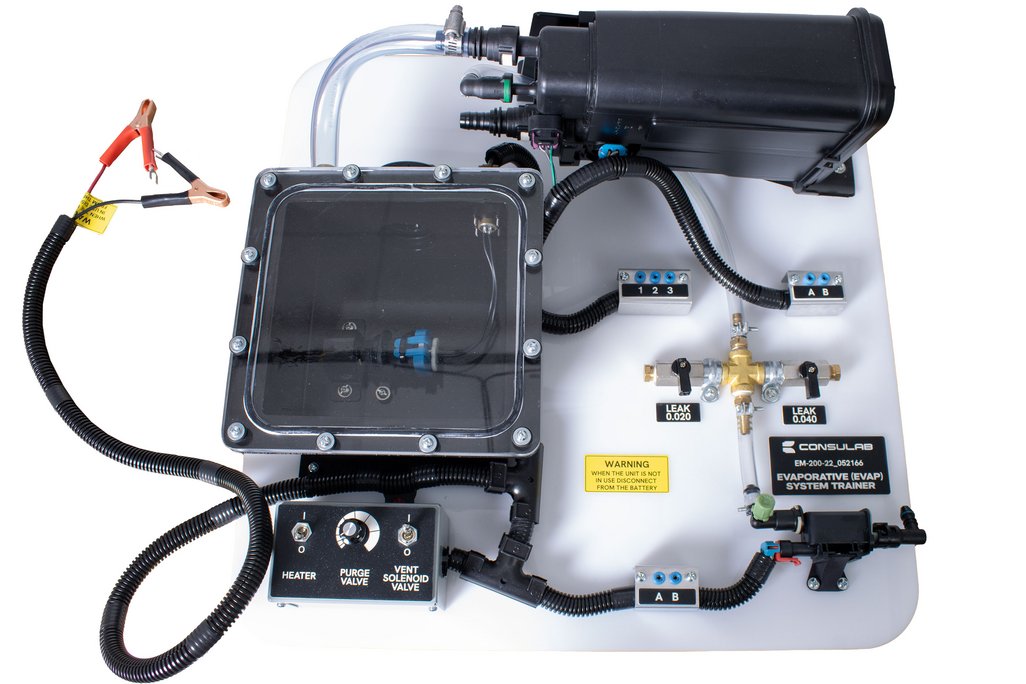

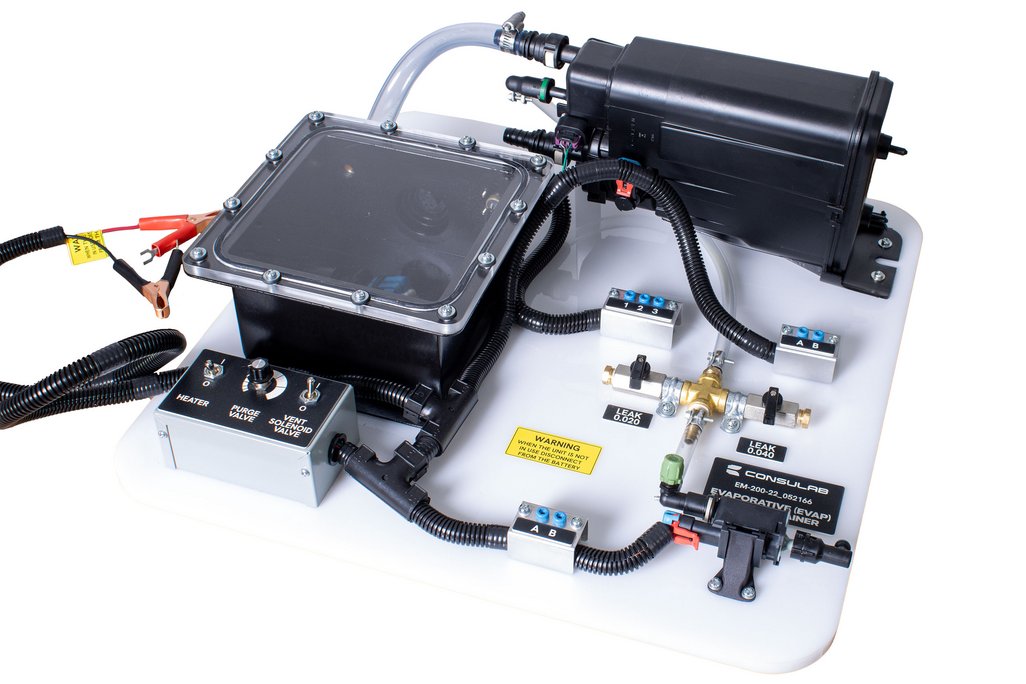

The EM-200-22 EVAP trainer is designed as a functional evaporative emissions system based on a Chevrolet Cobalt platform. It can be used to teach the operational functions of a typical evaporative emission system. It also has the capability of demonstrating the cause and effect of having a small and/or large system leak. Students are able to visualize the components of the system and can hookup test equipment to learn how system leaks will affect performance.
Educational Advantages
- Provides visualization of a typical EVAP system operation without vehicle access restrictions
- Using manual control valves, both 0.020″ and 0.040″ leaks can be created and evaluated
- Includes test points for DVOM hookup
- Includes a fuel tank heater for pressure change demonstrations
- Includes an adjustable PWM command (0-100%) feature for the Purge Solenoid
Features
- Functional fuel tank with OEM fuel cap
- Built-in internal fuel tank heater with control switch
- Adjustable PWM (pulse Width modulated (0-100%) control for purge solenoid valve
- Manual control valves for creating 0.020″ and 0.040″ leaks
- Control switch for vent solenoid valve
- It can be stored on the EM-200-09 stand or in the EM-200-10 storage cabinet
OEM Parts Included
- Purge solenoid valve
- Vent solenoid valve
- Tank pressure sensor
- Charcoal canister
- EVAP pressure test port for “smoke testing”
- Fuel cap
- Electrical test points for the purge solenoid valve, the vent solenoid valve and the tank pressure sensor
