Disc & Drum ABS Brake Trainer & Faults
EM-122-HN02_052621

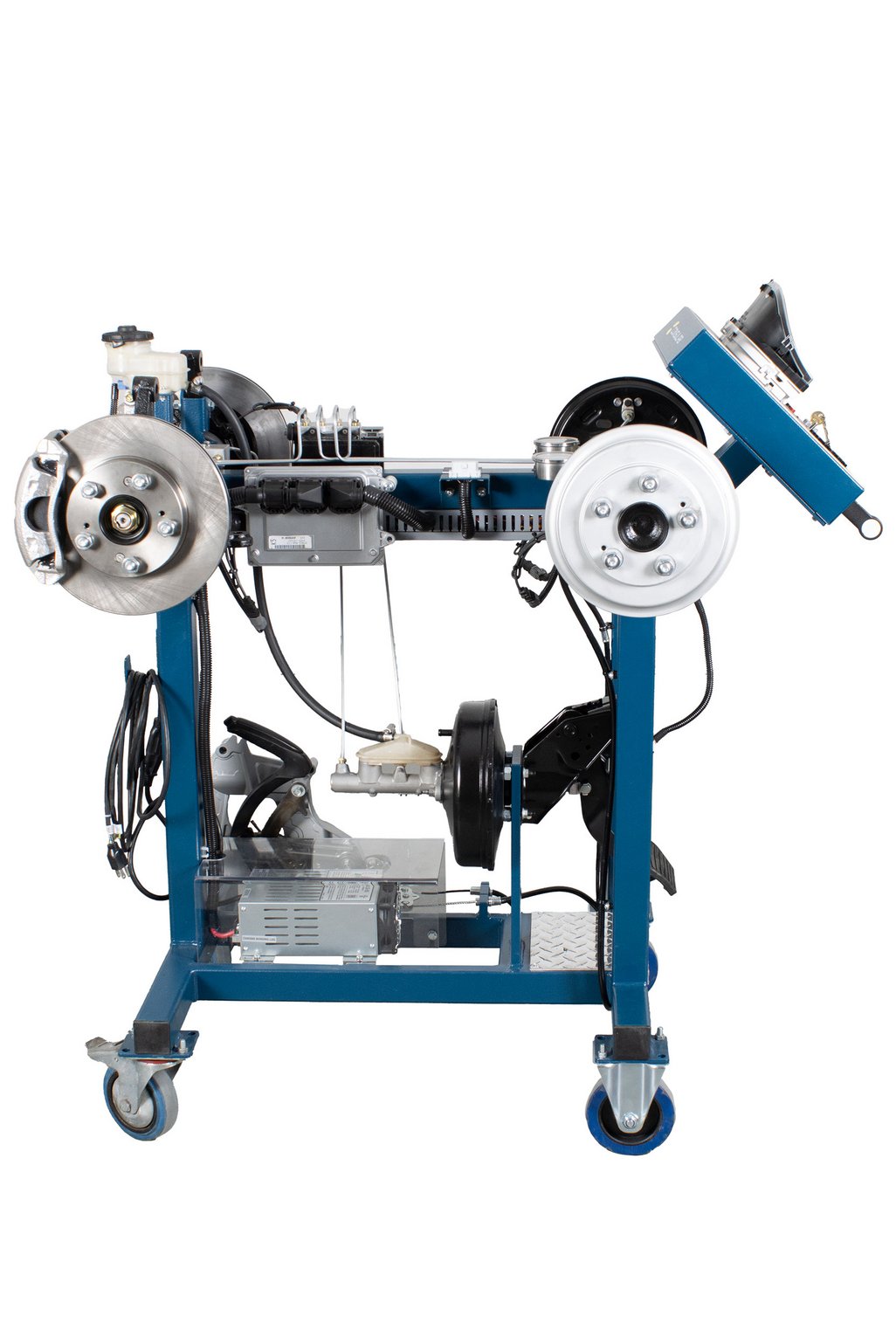

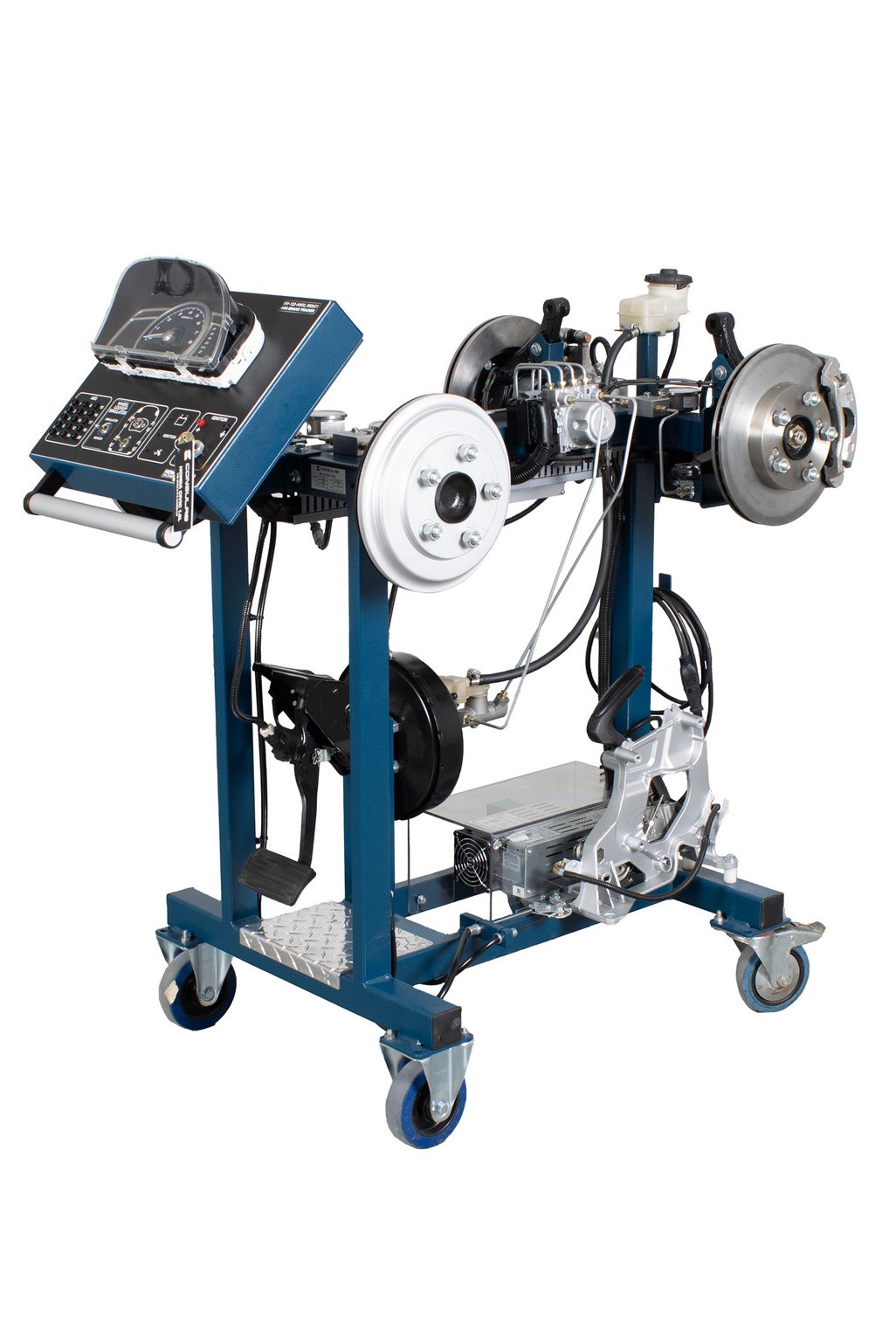

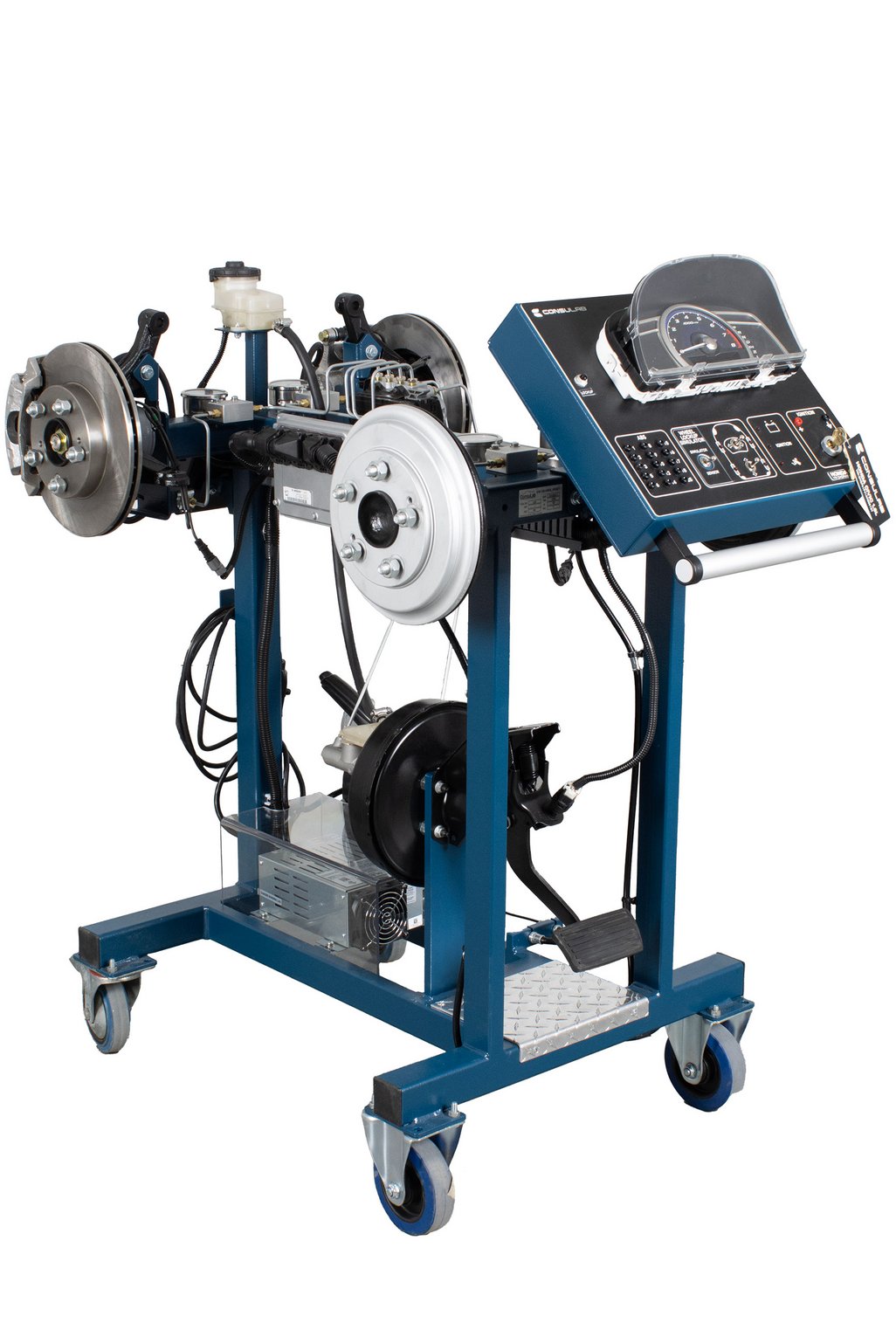

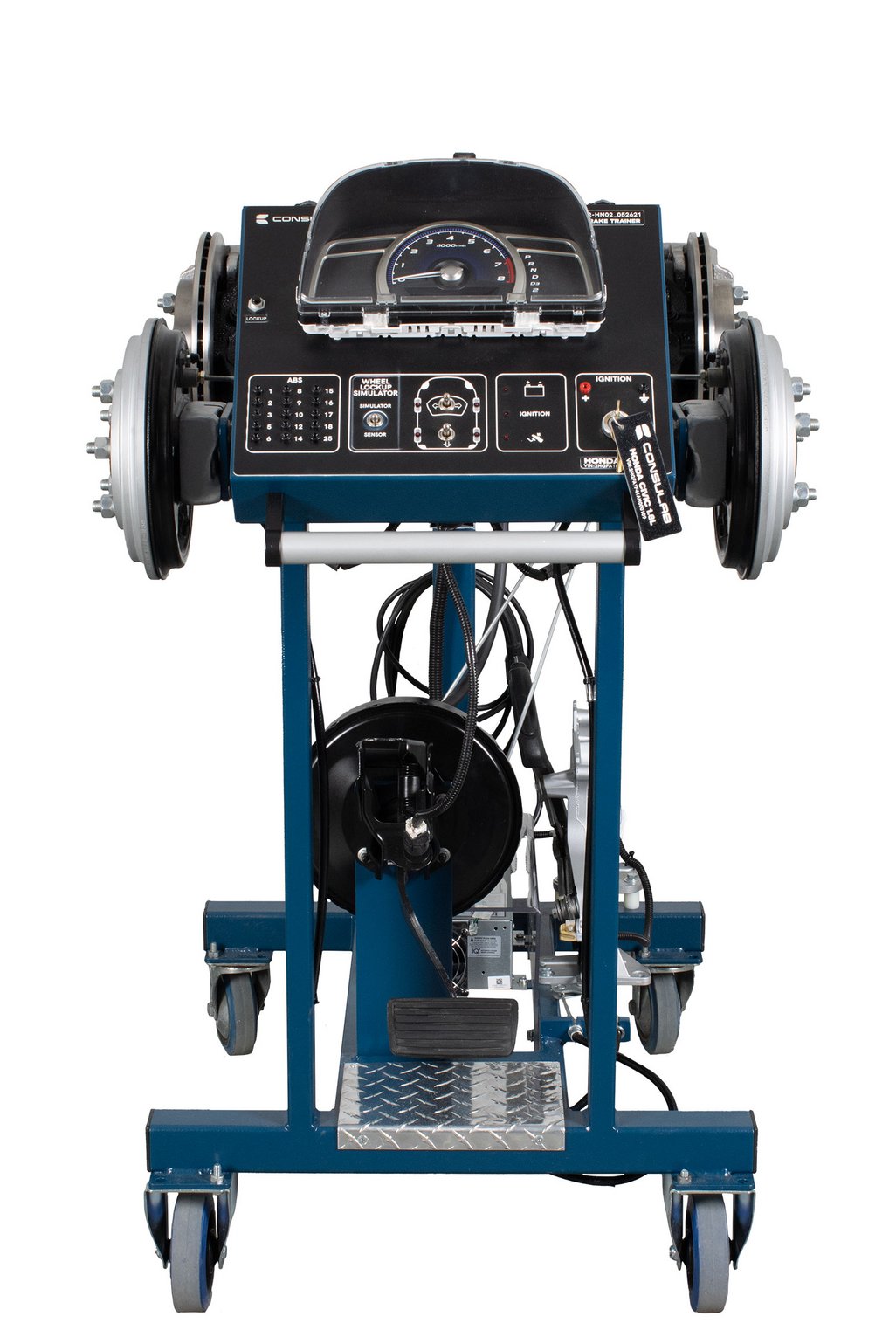

The EM-122-HN02 Four-wheel Honda ABS trainer is used to demonstrate the functionality of the ABS braking system as it operates on a real vehicle. Mechanical faults in the friction components are designed to be diagnosed by students while performing a brake inspection. This trainer also comes with six insertable, electronic faults. The trainer is built with OEM components and is based on the 2006-2010 Honda Civic platform. The trainer can be used in the classroom environment for demonstrations to students. The instructor can manually select which wheel combinations are desired to lockup prior to application of brake pedal. The trainer provides a safe and effective method of demonstrating the principles of braking systems used on today’s vehicles.
Educational Advantages
- Demonstrates full functionality of a 4-wheel ABS system
- Allow choice of wheel combinations to “lock-up” during ABS operation
- Allows choice of ABS “application” timing for clearer demonstrations
- Mechanical faults in the friction components are designed to be diagnosed by students while performing a brake inspection
- Trainer follows OEM wiring schematics
- Trainer can be used for full mechanical service and repair operations of front disc brakes, rear drum brakes, master cylinder & hydraulic system (w/ pedal), ABS electrical system (w/ wheel speed sensors), ABS hydraulic control unit and parking brake system
- Many NATEF and Red Seal tasks can be accomplished using this trainer
- Trainer can fit through a standard 30″ door opening
- Provides “real world” brake pedal feedback pulsations during ABS operation
Application
- 2006-2010 Honda Civic
Features
- “Real” automotive components with fully functional ABS 3-channel hydraulic system
- Equipped with DLC for scan tool data stream hookup
- Mechanical faults in the friction components are designed to be diagnosed by students while performing a brake inspection

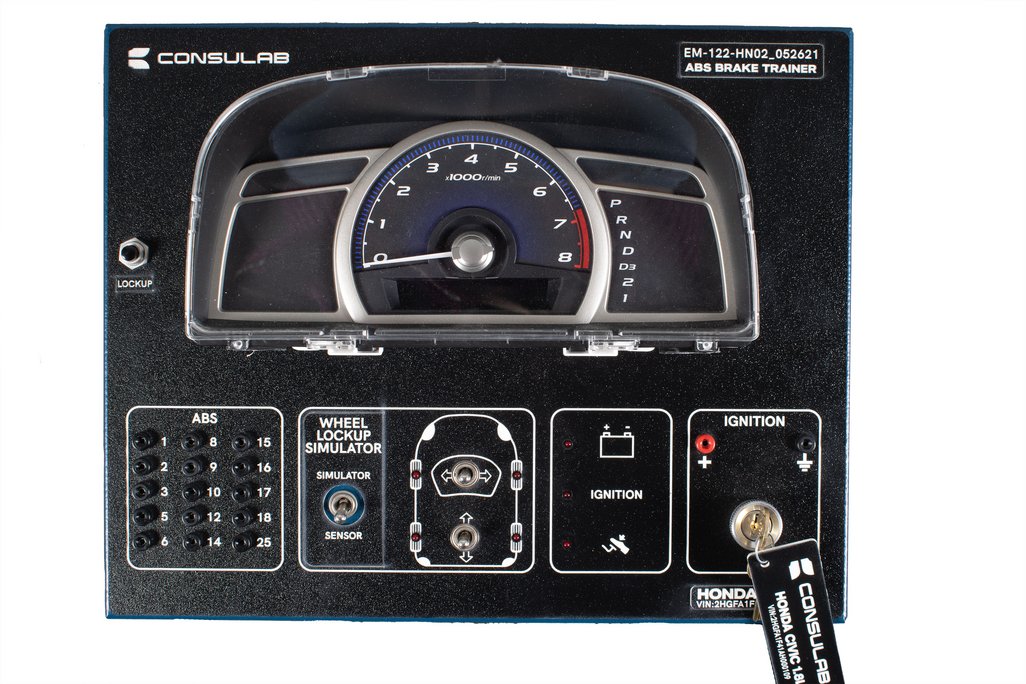

- OEM vehicle instrument panel with indicator lamps
- ABS Control Unit breakout box for hookup of DVOM and Oscilloscope
- Hydraulic pressure gauges at each wheel (4)
- Fault insertion box (lockable) 6 faults
- Four (4) hubs equipped with brakes (2 discs & 2 drums) (NOTE: discs, drums, wheel cylinders, calipers, and all friction materials are new. All other OEM components are recycled from actual vehicles)
- Fully functional parking brake system
- 55A DC power supply included
- Heavy Duty metal stand with casters for easy transport of trainer
- All routine brake service procedures can be performed on this trainer including component replacement, adjustments, and hydraulic bleeding
- Power requirements: 110V @ 20amps or 220V @ 10 amps (specify when ordering)
- Sturdy powder coated metal stand with two locking swivel and two fixed casters
