Cutaway Starting System Trainer
EM-200-19_052932

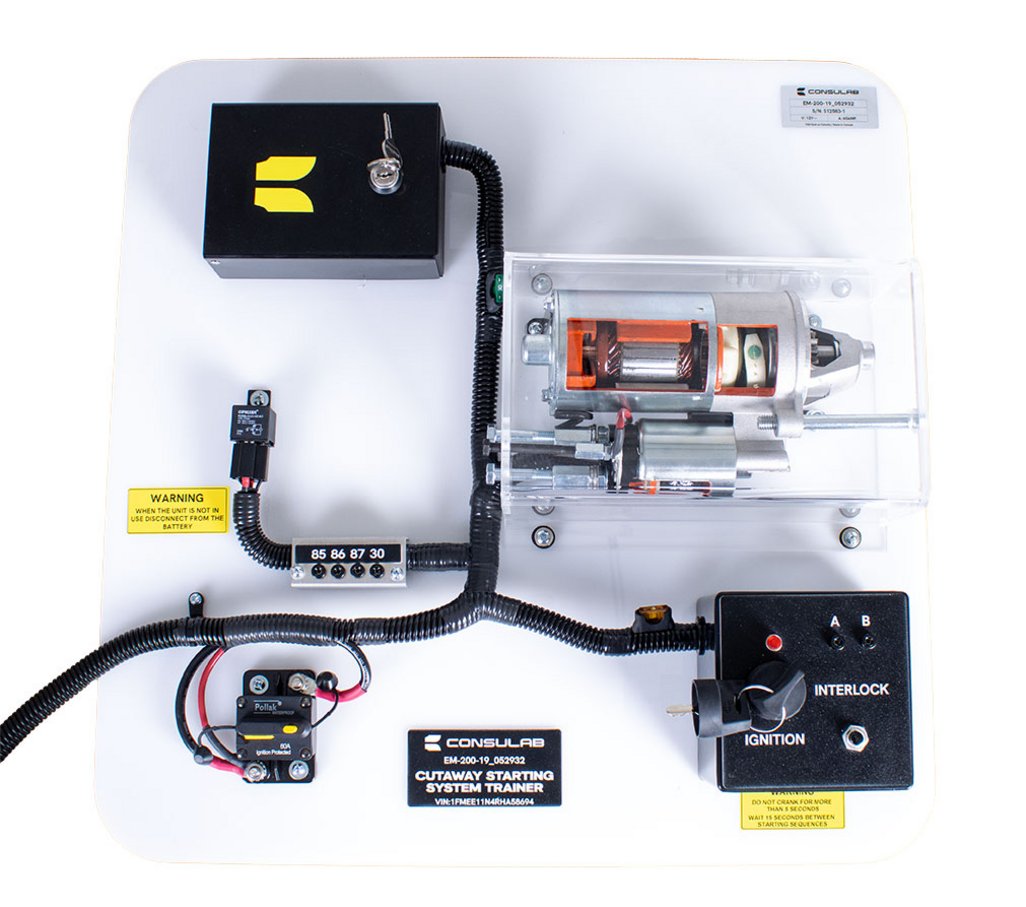

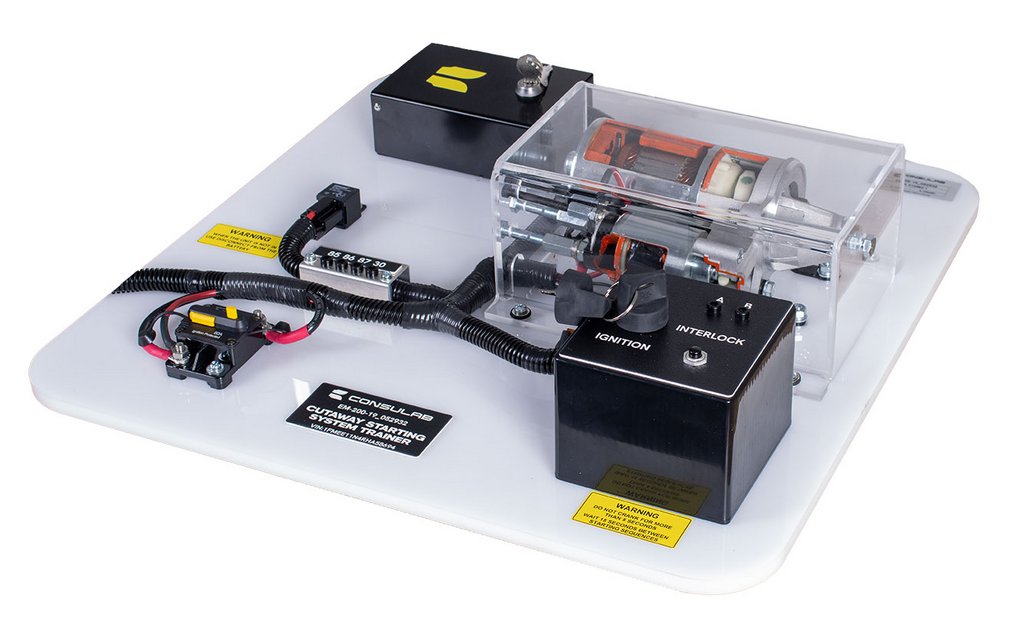

The EM-200-19 Starting System Trainer allows for the demonstration of a complete starting system using real-world components. Key areas of the starter have been cutaway to allow visual observation of major components while still being functional.
Educational Advantages

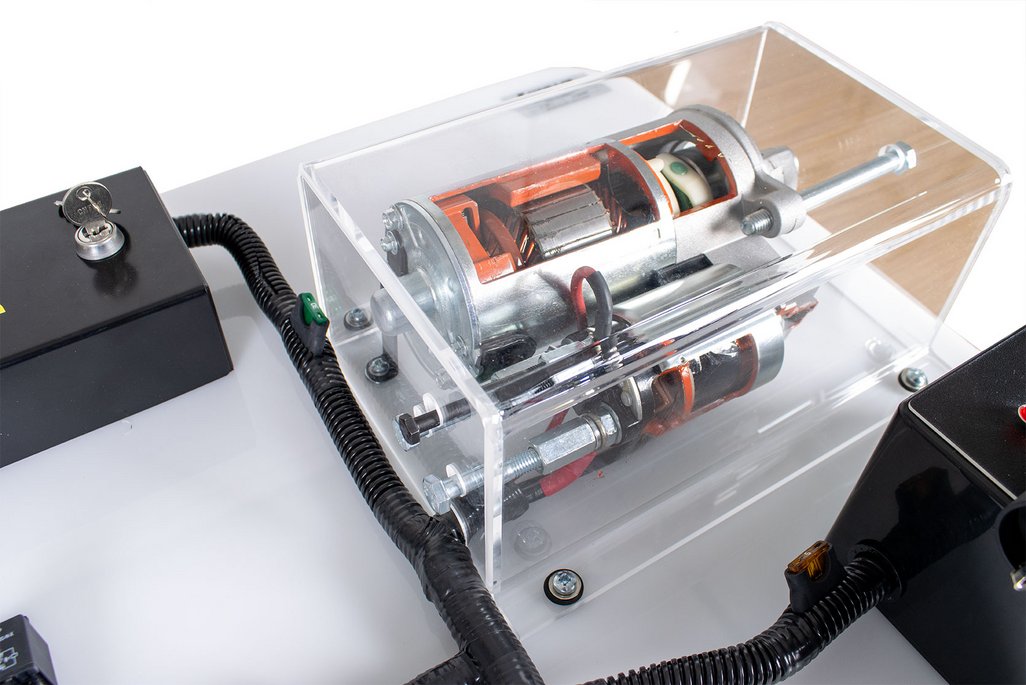

- Fully functional cutaway starter.
- Allows students to view all internal start components during live starter operation.
- Starter is enclosed in plexiglass to ensure student safety.
- Demonstrates starter planetary gear reduction.
- Ability to test and verify a basic starting circuit.
- Four operational faults can be inserted to promote student diagnostic troubleshooting competencies.
- The starter solenoid can also be bridged with a remote starter switch (not included) using the solenoid primary terminals.
Application
- Ford Modular V8
Included Components
The cutaway starting station includes:
- Starter
- Ignition Switch
- Clutch Switch
- Relay

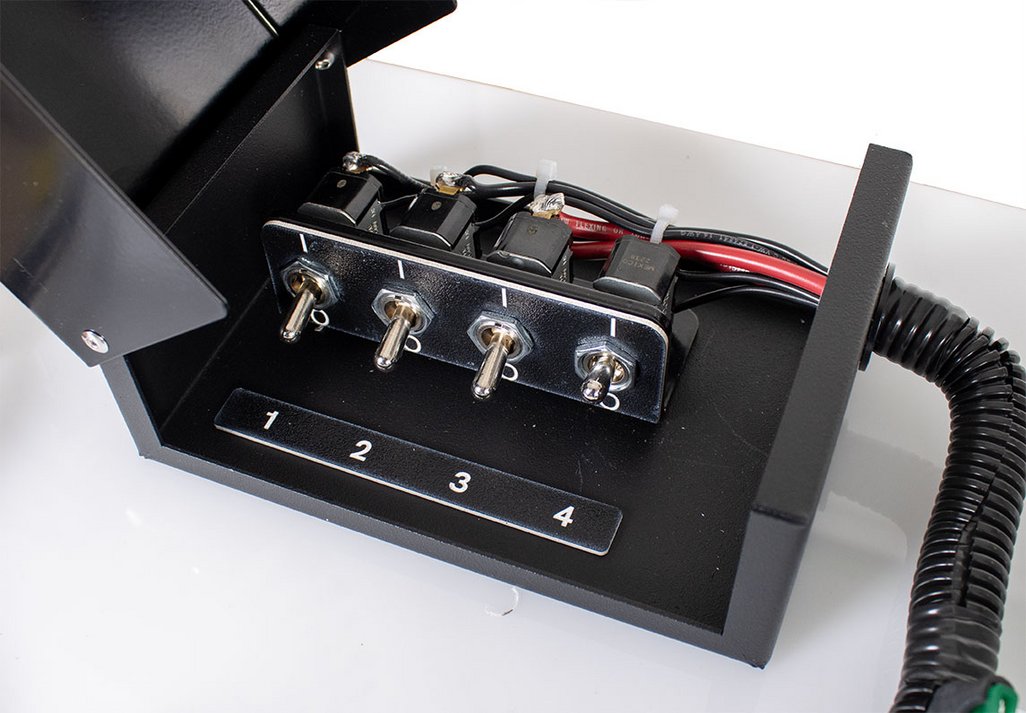

- Fault box with 4 faults
- Circuit breaker with reset
