Cutaway Hydraulic Clutch System Trainer
EC-1120_053185

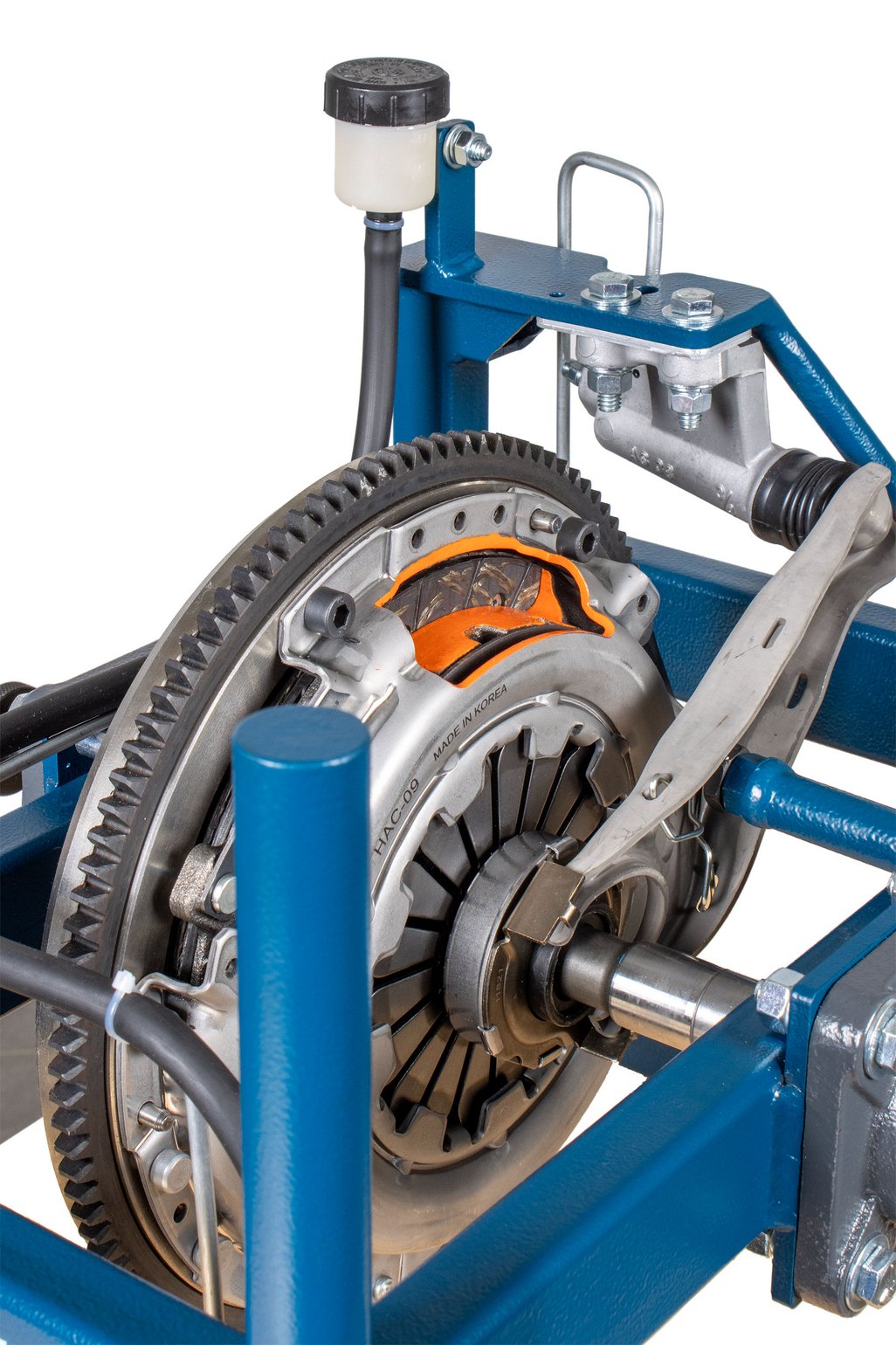

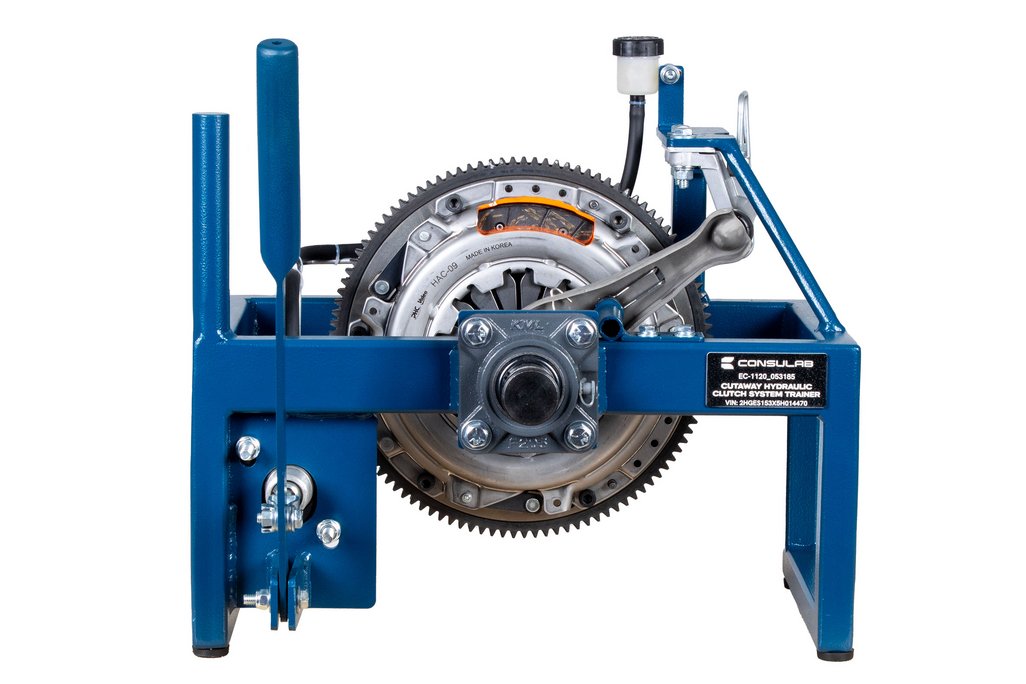

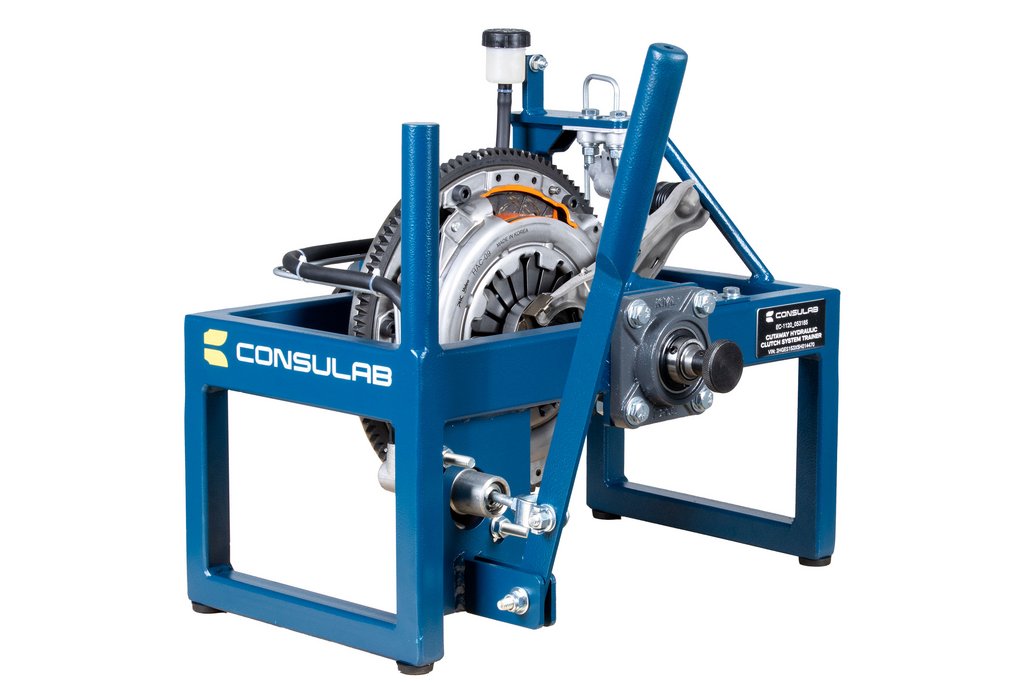

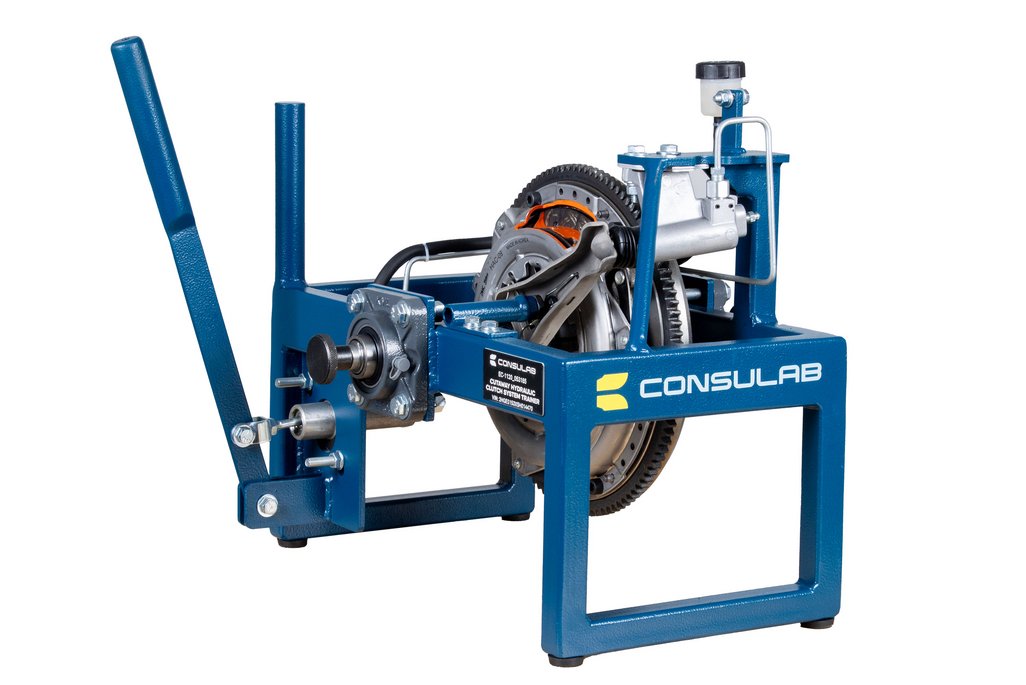

The EC-1120 is a working system of actual, new components so that students can visualize the actual operation.
Some of the highlights of this trainer include:
– total visibility of all clutch components without the limitations of working under
a vehicle
– takes the mystery out of clutch operation

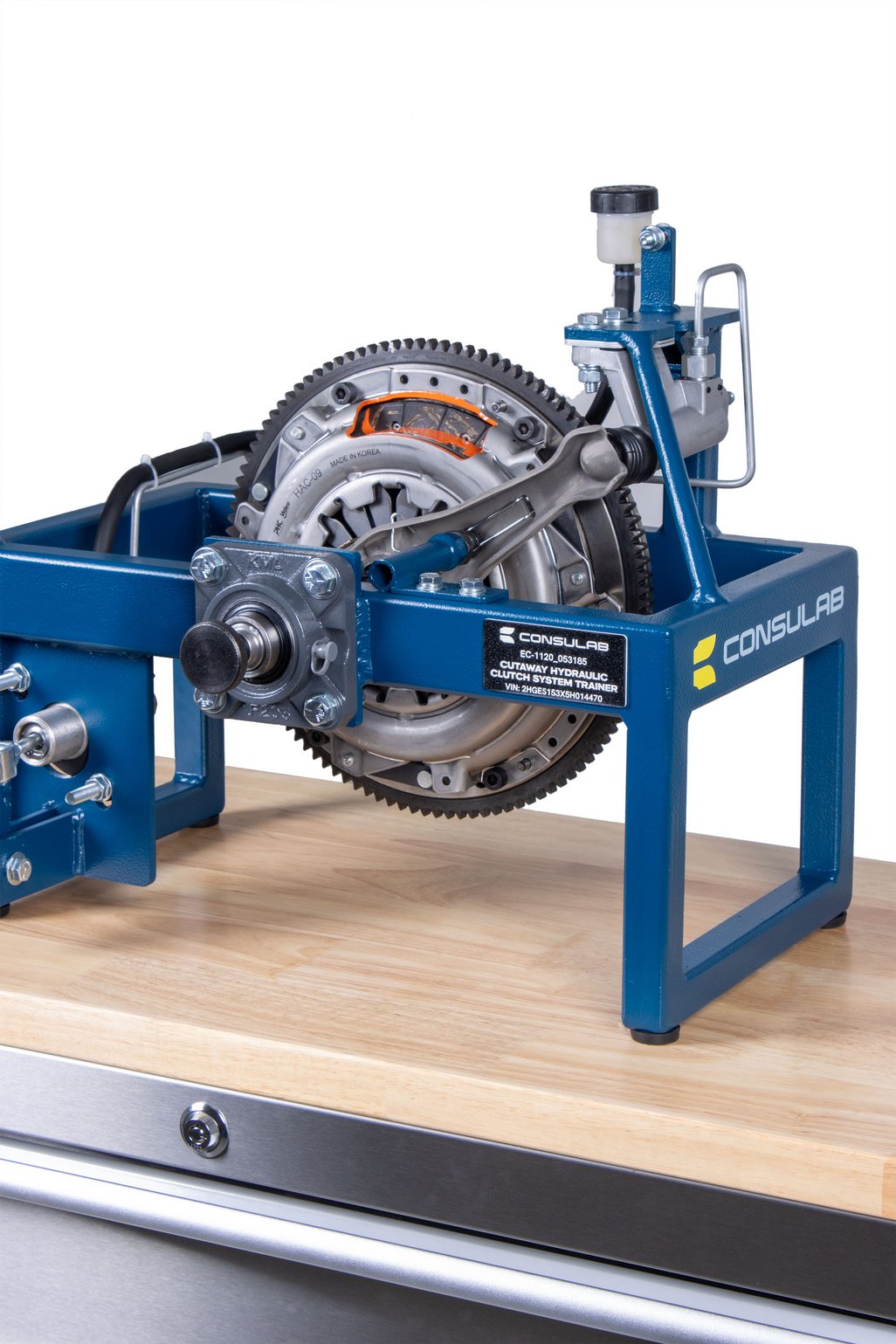

– sits on a bench or tabletop to allow more student access and visibility of operation
Educational Advantages
- Reinforces visual and “hands-on” learning strategies
- Uses actual clutch components that function as they would in a vehicle
- Easy to operate and understand
- Small and compact for easy use and storage
- Achieve ASE/Red Seal student learning outcomes
Application
- Honda clutch components
Features
- Compact
- Uses actual vehicle components
- Safe and easy to use
- Clutch disc
- Flywheel
- Slave cylinder
- Applicable ASE Education Foundation (NATEF) tasks
- Inspect clutch pedal linkage, cables, automatic adjuster mechanisms, brackets, bushings, pivots, and springs; perform needed action
- Bleed clutch hydraulic system
- Inspect flywheel and ring gear for wear, cracks, and discoloration; determine needed action
- Measure flywheel runout and crankshaft end play; determine needed action
- Operational
- Ease of operation
- Pressure plate
- Release/throw-out bearing
- Master cylinder
- Included are linkages for pedal and clutch fork,
fluid reservoir, and fluid lines - Diagnose clutch noise, binding, slippage, pulsation,
and chatter; determine action needed - Inspect and/or replace clutch pressure plate
assembly, clutch disc, release (throw-out) bearing,
linkage, and pilot bearing/bushing (as applicable) - Check and adjust clutch master cylinder fluid level;
check for leaks; use proper fluid type per
manufacturer specification
