EM-140S-GM06A Spec Sheet

consulab, automotive trainer

ConsuLink GM 1.4L Engine Trainer, AC & Stop-Start

 EM-140S-GM06A_053338

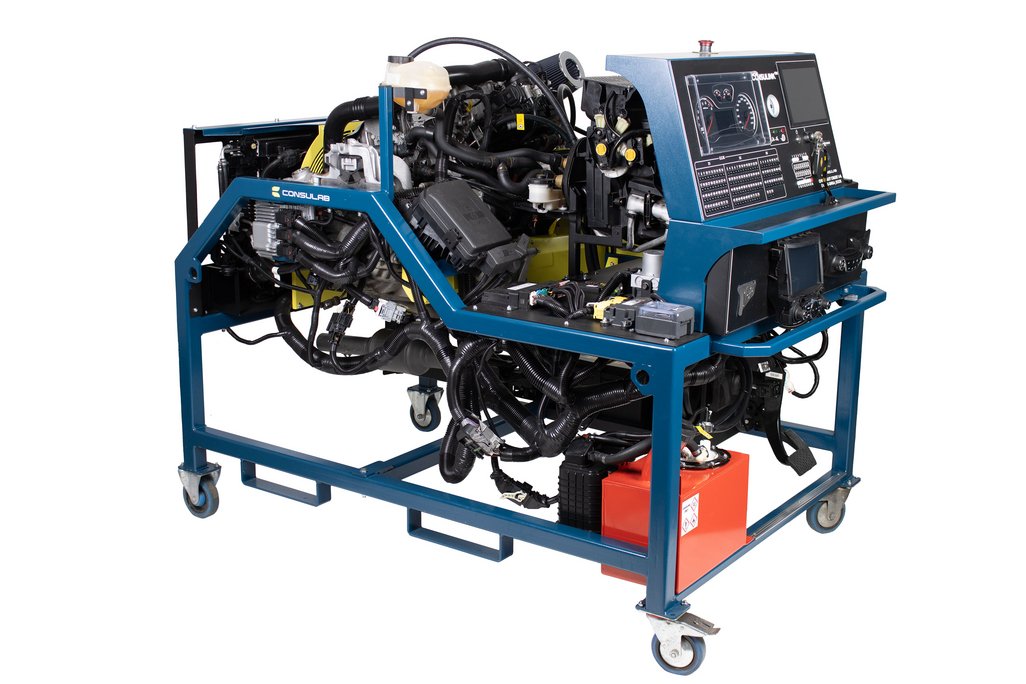

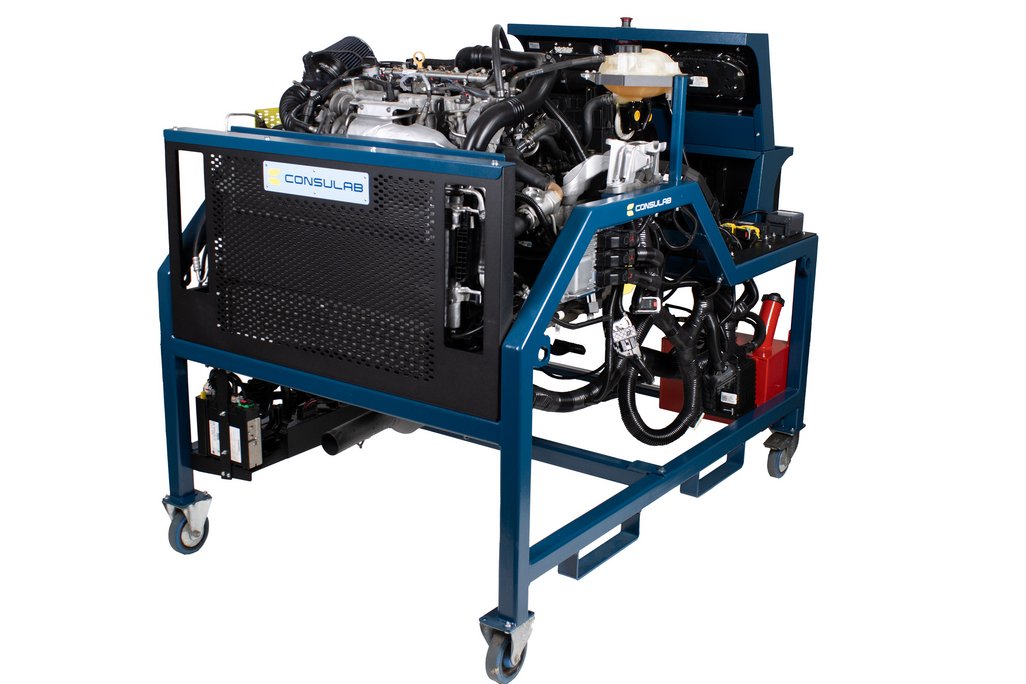

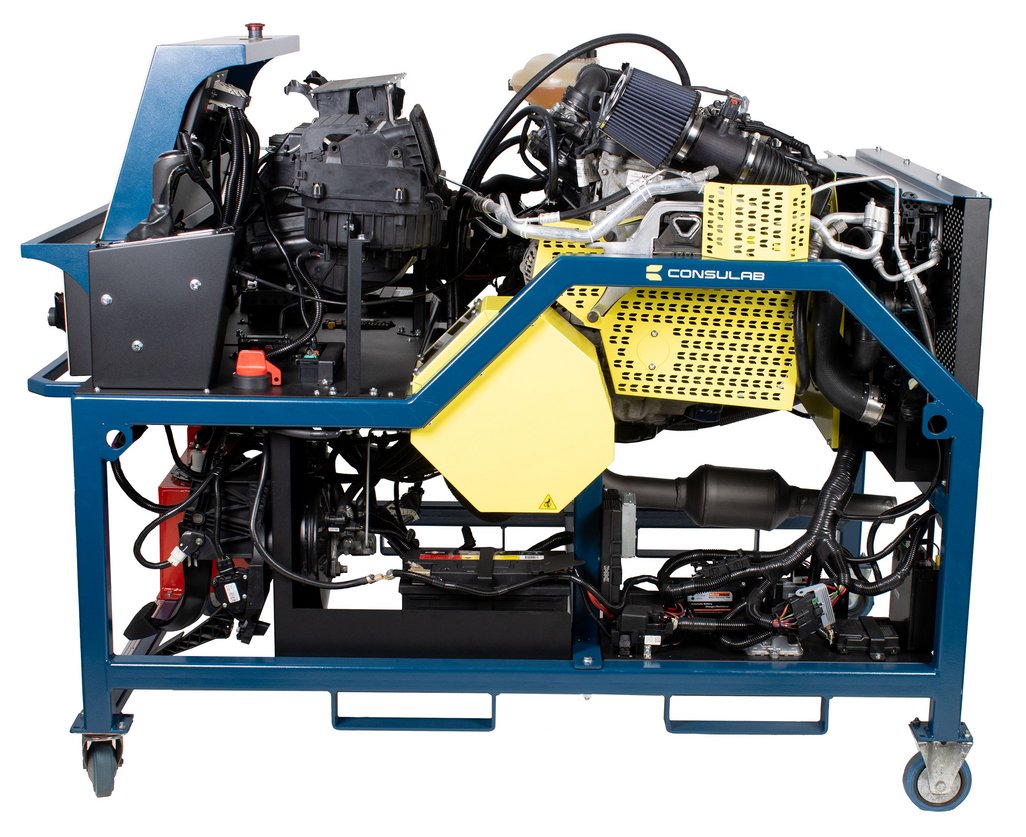

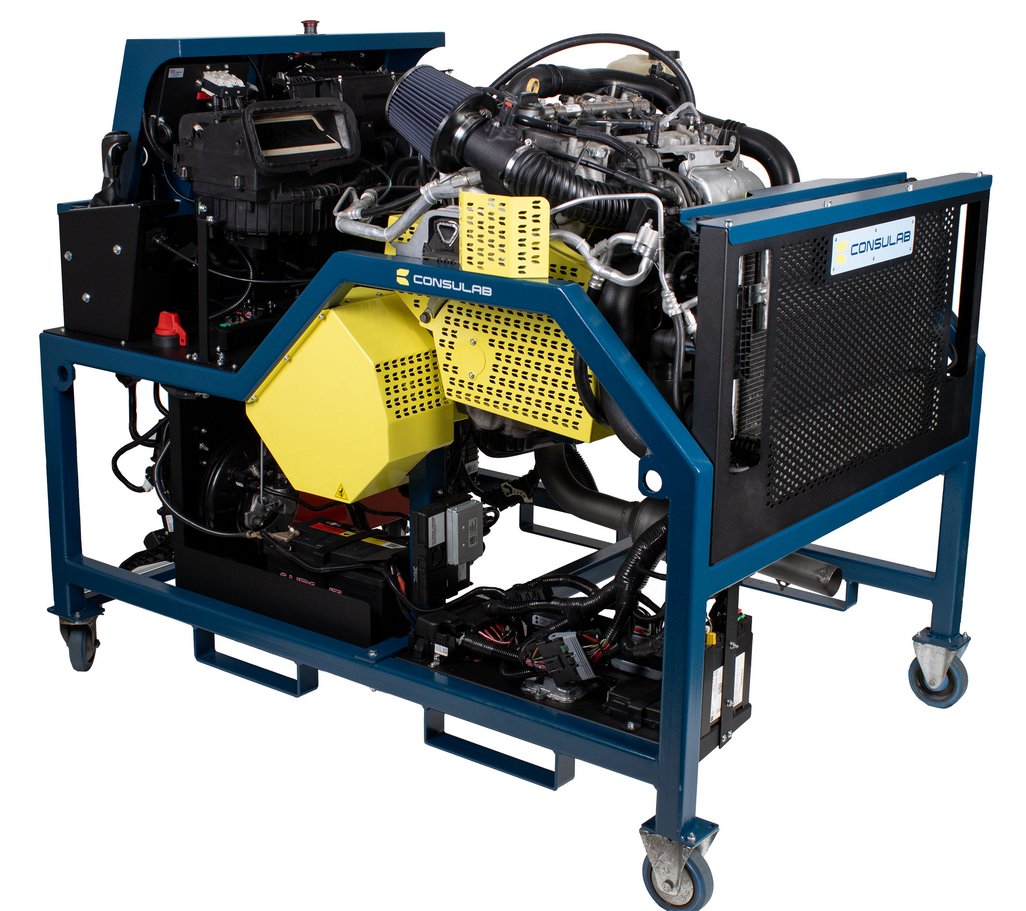

The ConsuLab EM-140S-GM06A Chevy Cruze 1.4-liter engine bench with GDI and start/stop technology is ConsuLab’s first engine bench to ever have 2 pedals (brake and accelerator). It has two pedals so you can do stall tests and load the engine; you can perform a basic “road test” within your classroom going up to 20mph which allows STOP/START to function! Combine this with the new ConsuLink™ (Patent Pending) student learning platform to enhance student engagement and use this bench to teach advanced drivability, engine performance and HVAC (air conditioning).



REQUEST A QUOTE
Educational Advantages
  • A self-contained total training package providing everything needed for engine diagnostics. Aligns with ASE Education Foundation and Red Seal tasks addressing electrical & engine performance
  • Over 39 student activities with instructor guides, case studies, fault insertion, diagrams, and built-in system schematics to guide the students and the instructor that saves many hours of organization and preparation by instructors
  • Perform a basic “road test” in your classroom and demonstrate the STOP/START and engine auto-stop features. By attaining all the enabled criteria you can force the engine to auto-stop at a “red light/stop sign”. You can then demonstrate all the different disable criteria that turns the system off
  • Equipped with OEM HVAC system and dash controls
  • Tablet-based ConsuLink Student Learning Platform designed to enhance student engagement
  • Trainer touchscreen can be mirrored to a TV or projector via HDMI out port
  • Stall test can be performed by depressing both accelerator and brake pedals simultaneously, this can be used to demonstrate loading the engine and for misfire detection

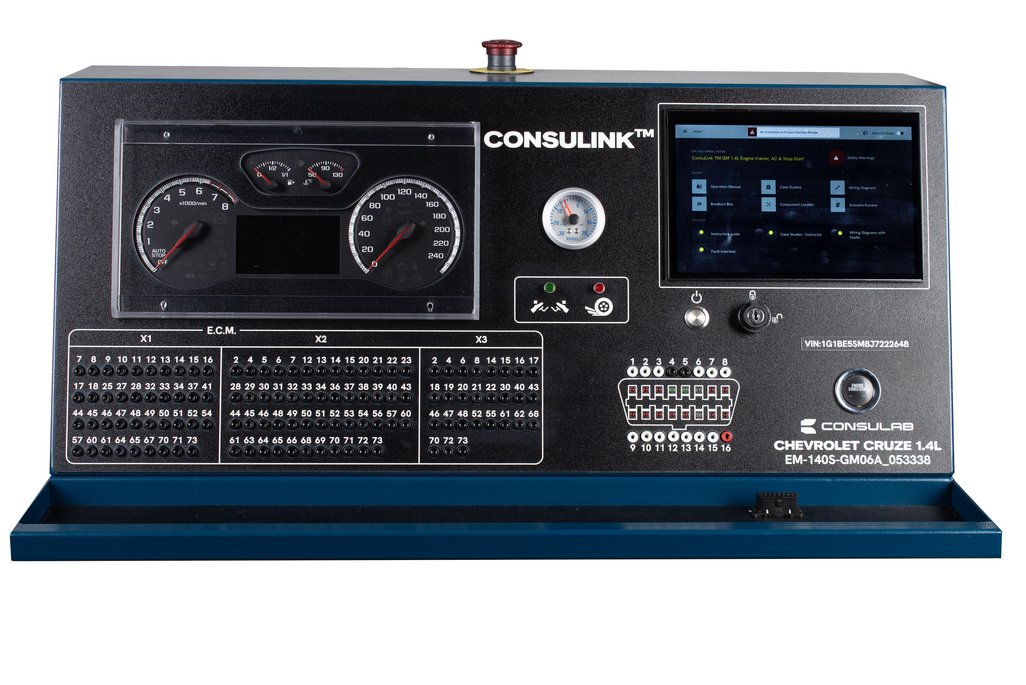

  • OEM instrument panel with all indicator lights
  • ECM Break Out Box matching OEM circuit pin identification with 2mm test receptacies
  • Engine systems respond to inserted faults with real world symptoms, OEM DTCs, scan tool datastream PID changes, and check engine light operation
  • A DLC (datalink connector) Break Out Box specifically designed for use in educational environments with robust 2mm test pins and LED indicators for all 16 pins of a standard OBDII DLC
